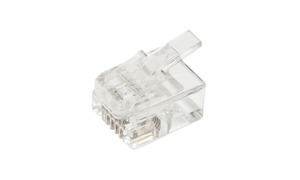

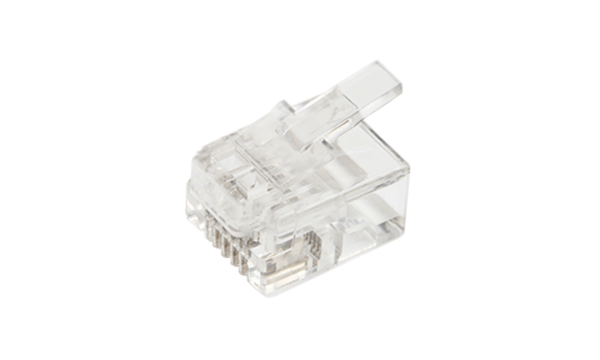

FMP05-101B 6P6C Modular Plug, Gold Plating
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- Category6P6C Modular Plug, Gold Plating
- Circuits6
- Entry Angle180° Vertical
- Electrical
- Current - Maximum per Contact2.00A
- Voltage - Maximum40V
- Contact Resistance35mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+105ºC
- Material and Plating
- Material-MetalCopper alloy
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPC UL94V-2
