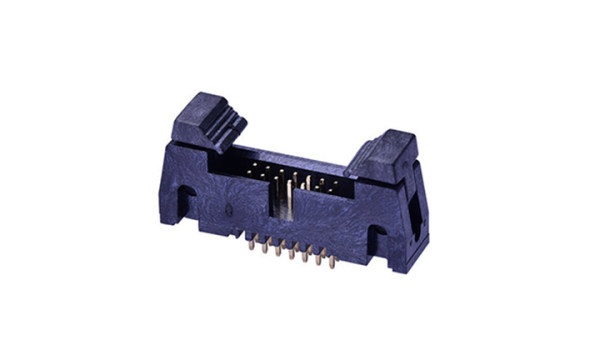

FBH12705 Ejector Box Header 1.27mm 180° (DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FBH12705-D10S1003K6K
Box Header 1.27mm 180°Vertical 10Circuits(DIP)
Stock(pcs) 0 Status Active MPQ 1 MOQ 1000 Lead time Estimated delivery date 2025-05-29 -

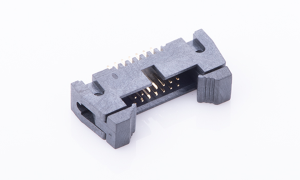

FBH12705-D14S1003K6K
Box Header 1.27mm 180°Vertical 14Circuits(DIP)
Stock(pcs) 128 Status Active MPQ 1 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-25 -
FBH12705-D16S1004K6K
Ejector Box Header 1.27mm ,16Circuits ,180° Vertical(DIP) ,PA6T
Stock(pcs) 0 Status Active MPQ 250 MOQ 1000 Lead time Estimated delivery date 2025-05-29 -
FBH12705-D16S1005K6K
Ejector Box Header 1.27mm ,16Circuits ,180° Vertical(DIP) ,PA9T
Stock(pcs) 0 Status Active MPQ 250 MOQ 1000 Lead time Estimated delivery date 2025-05-29 -

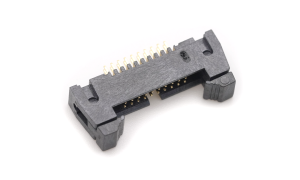

FBH12705-D20S1003K6K
Ejector Box Header 1.27mm ,20Circuits ,180° Vertical(DIP) ,LCP
Stock(pcs) 14 Status Active MPQ 1 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-05-29 -
FBH12705-D26S1003K6K
Ejector Box Header 1.27mm ,26Circuits ,180° Vertical(DIP) ,LCP
Stock(pcs) 0 Status Active MPQ 150 MOQ 1000 Lead time Estimated delivery date 2025-05-30 -
FBH12705-D30S1003K6K
Ejector Box Header 1.27mm ,30Circuits ,180° Vertical(DIP) ,LCP
Stock(pcs) 0 Status Active MPQ 150 MOQ 1000 Lead time Estimated delivery date 2025-05-30 -
FBH12705-D34S1003K6K
Ejector Box Header 1.27mm ,34Circuits ,180° Vertical(DIP) ,LCP
Stock(pcs) 0 Status Active MPQ 150 MOQ 1000 Lead time Estimated delivery date 2025-05-30 -

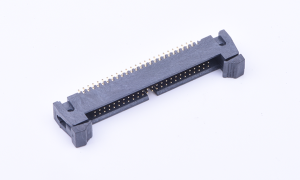

FBH12705-D50S1003K6K
Ejector Box Header 1.27mm ,50Circuits ,180° Vertical(DIP) ,LCP
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date 2025-05-30 -
FBH12705-D60S1003K6K
Ejector Box Header 1.27mm ,60Circuits ,180° Vertical(DIP) ,LCP
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date 2025-05-30 -
FBH12705-D64S1003K6K
Ejector Box Header 1.27mm ,64Circuits ,180° Vertical(DIP) ,LCP
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date 2025-05-30
- Category
- CategoryEjector Box Header 1.27mm 180°Vertical(DIP)
- Circuits6,10,14,16,20,26,30,34,40,44,50,60,64,68
- Pitch1.27mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum250V
- Contact Resistance20 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage100V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold or Tin
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
