FBH12709 Ejector Box Header 1.27mm (SMT)_TXGA Industrial Electronic Co., Ltd.

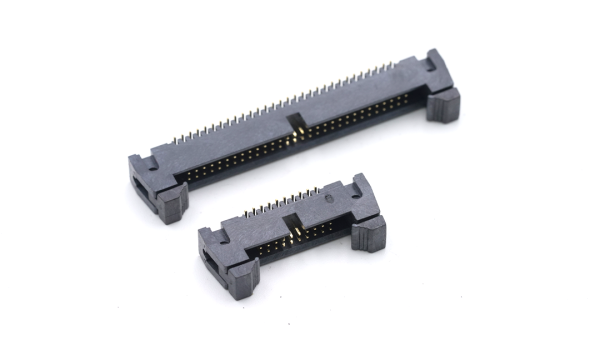

FBH12709 Ejector Box Header 1.27mm (SMT)

EU RoHS
Compliant(2011/65/EU)
EU REACH
Dose not contain REACH SVHC(1907/2006/EC)
EU ELV
Compliant(2000/53/EC)

FBH12709-D06S1003K6K

Ejector Box Header 1.27mm 180°Vertical 6Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

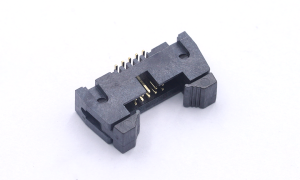

FBH12709-D10S1003K6K

Ejector Box Header 1.27mm 180°Vertical 10Circuits(SMT)

Stock(pcs)	11	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-25

FBH12709-D14S1003K6K

Ejector Box Header 1.27mm 180°Vertical 14Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

FBH12709-D16S1003K6K

Ejector Box Header 1.27mm 180°Vertical 16Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

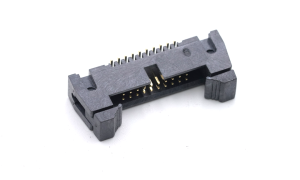

FBH12709-D20S1003K6K

Ejector Box Header 1.27mm 180°Vertical 20Circuits(SMT)

Stock(pcs)	50	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-25

FBH12709-D20S1003K6M

Ejector Box Header 1.27mm 180°Vertical 20Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-30

FBH12709-D26S1003K6K

Ejector Box Header 1.27mm 180°Vertical 26Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

FBH12709-D26S1013K6K

Ejector Box Header 1.27mm 180°Vertical 26Circuits(SMT)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

FBH12709-D30S1003K6K

Ejector Box Header 1.27mm 180°Vertical 30Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

FBH12709-D34S1003K6K

Ejector Box Header 1.27mm 180°Vertical 34Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

FBH12709-D40S1003K6K

Ejector Box Header 1.27mm 180°Vertical 40Circuits(SMT)

Stock(pcs)	10	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-25

FBH12709-D40S1003K6M

Ejector Box Header 1.27mm 180°Vertical 40Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date 2025-05-30

FBH12709-D44S1003K6K

Ejector Box Header 1.27mm 180°Vertical 44Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

FBH12709-D50S1003K6K

Ejector Box Header 1.27mm 180°Vertical 50Circuits(SMT)

Stock(pcs)	2	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-25

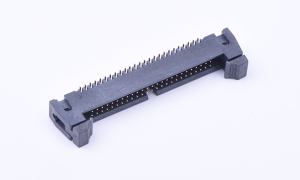

FBH12709-D50S1003K6M

Ejector Box Header 1.27mm 180°Vertical 50Circuits(SMT)

Stock(pcs)	49	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-29

FBH12709-D50S1013K6K

Ejector Box Header 1.27mm 180°Vertical 50Circuits(SMT)(1μ'')

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

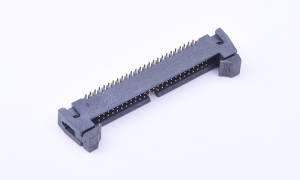

FBH12709-D50S1013K6M

Ejector Box Header 1.27mm 180°Vertical 50Circuits(SMT)(1μ")

Stock(pcs)	40	Status	Active
MPQ	1000	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-29

FBH12709-D60S1003K6K

Ejector Box Header 1.27mm 180°Vertical 60Circuits(SMT)

Stock(pcs)	20	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date when out of stock 2025-05-25

FBH12709-D64S1003K6K

Ejector Box Header 1.27mm 180°Vertical 64Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

FBH12709-D68S1003K6K

Ejector Box Header 1.27mm 180°Vertical 68Circuits(SMT)

Stock(pcs)	0	Status	Active
MPQ	1	MOQ	1000
Lead time	Estimated delivery date 2025-05-25

Category
CategoryEjector Box Header 1.27mm 180°Vertical (SMT)
Circuits6,10,14,16,20,26,30,34,40,44,50,60,64,68
Pitch1.27mm
Electrical
Current - Maximum per Contact1.00A
Voltage - Maximum250V
Contact Resistance20 mΩ Max
Insulation Resistance500 MΩ Min
Withstanding Voltage100V AC r.m.s
Temperature Range operating-40ºC~+85ºC
Material and Plating
Material-MetalBrass
Material - Plating MatingGold
Material - Plating TerminationGold
Material - ResinLCP UL94V-0
Compatible Parts
Pulg-
Receptacle-
Terminal-
Assembly shell-

Sales Drawings

Drawing-FBH12709.pdf
