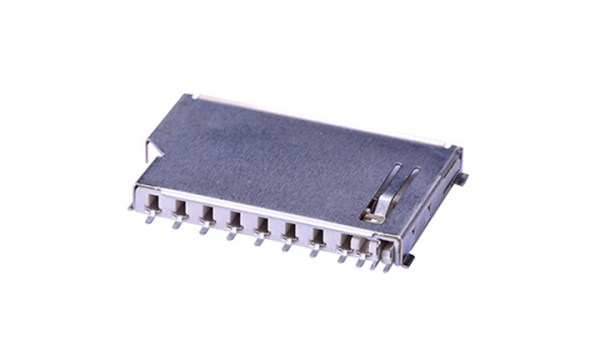

FCD103 SD Card ( H2.8mm)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategorySD Card Connector Short Type(SMT)
- Height2.8mm
- Electrical
- Current - Maximum per Contact0.50A
- Voltage - Maximum100V
- Contact Resistance100 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-25ºC~+90ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold or Tin
- Material - Plating TerminationGold or Tin
- Material - ResinHigh Temperature Plastic UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
