FDB0901 D-SUB 90°Angle Male 9Circuits
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-
FDB0901-M0DB300K6KA
D-SUB 90°Angle Male 9Circuits
Stock(pcs) 3847 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-16 -

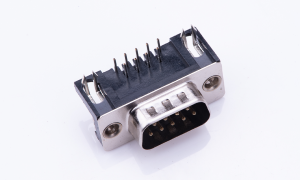

FDB0901-M0DB300K6KB
D-SUB 90°Angle Male 9Circuits
Stock(pcs) 30 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-16 -

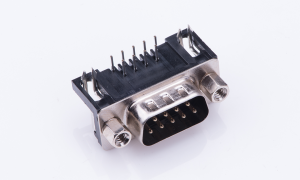

FDB0901-M0DB300K6KC
D-SUB 90°Angle Male 9Circuits
Stock(pcs) 18 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-16 -
FDB0901-M0DB300K6KD
D-SUB 90°Angle Male 9Circuits
Stock(pcs) 30 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-16 -
FDB0901-M0DB300K6KE
D-SUB 90°Angle Male 9Circuits
Stock(pcs) 0 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date 2025-08-20 -

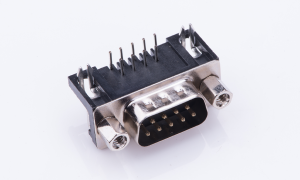

FDB0901-M0DB300K6KF
D-SUB 90°Angle Male 9Circuits
Stock(pcs) 5 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock 2025-08-16
- Category
- CategoryD-SUB 90°Angle Male (DIP)
- Circuits9
- Row optionDouble row
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum250V
- Contact Resistance25 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-55ºC~+105ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
