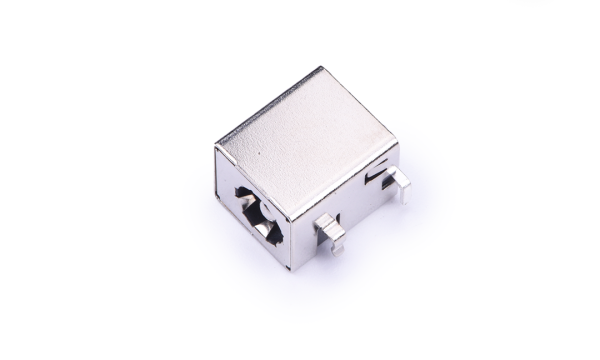

FDP01 DC Power Jack ∅2.5mm DIP
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryDC Power Jack ∅2.5mm DIP
- Pin∅2.5mm
- Electrical
- Current - Maximum per Contact5.00A
- Voltage - Maximum30V
- Contact Resistance30 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-30°C～+70°C
- Material and Plating
- Material-MetalPhosphor bronze
- Material - Plating MatingSilver
- Material - Plating TerminationSilver
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
