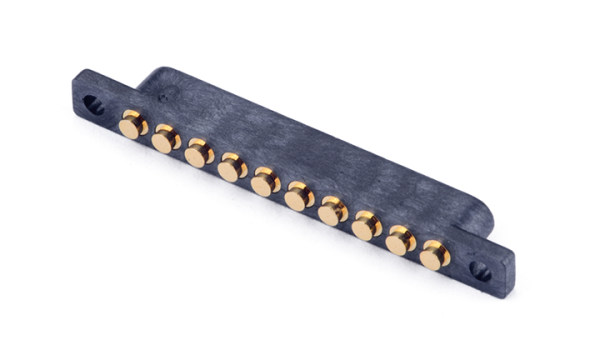

FPG25010 Pogo Pin Battery connector 180°Vertical(DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryPogo Pin Battery connector 180°Vertical(DIP)
- Circuits10
- Pitch2.5mm
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum12V
- Contact Resistance30 mΩ Max
- Insulation Resistance100 MΩ Min
- Withstanding Voltage100V AC r.m.s
- Temperature Range operating-30ºC~+85ºC
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinLCP (UL94V-0)
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
