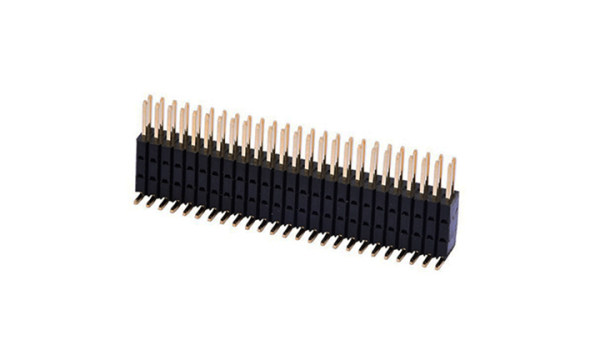

FPH12751 Pin Header 1.27mm 180°Vertical Double row (SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryPin header-PCB socket Pitch：1.27mm （SMT）
- Circuits8-80,100
- Pitch1.27mm
- Entry Angle180° Vertical
- Color - ResinBlack
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum250V
- Contact Resistance20 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage100V AC r.m.s
- Temperature Range operating-25ºC~+85ºC
- Material and Plating
- Material-MetalBrass
- Material - Plating MatingGold
- Material - Plating TerminationGold/Tin
- Material - ResinPA6T UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
