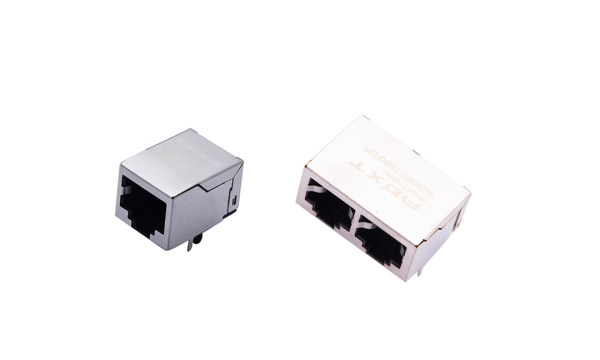

FRJ45007 RJ45 10P8C 90°Angle 1/2Ports
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

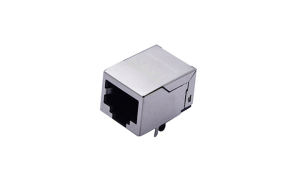

FRJ45007-1100K6K02B0
RJ45 Connector 90°Angle ,1Port ,Gold flash ,Black ,Non-LED ,
Stock(pcs) 5 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -

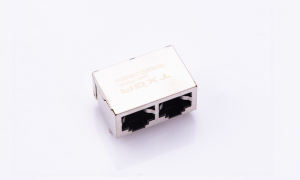

FRJ45007-2100K6K02A0
RJ45 Connector 90°Angle ,2Ports ,Gold flash ,Black ,Non-LED ,
Stock(pcs) 608 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-18|timezoneDate}} -
FRJ45007-2103K6K02A0
RJ45 Connector ,2Ports ,3μ" ,Black ,Non-LED ,
Stock(pcs) 0 Status Active MPQ 50 MOQ 2000 Lead time Estimated delivery date {{2026-04-19|timezoneDate}}
- Category
- CategoryRJ45 connector -PCB Socket 10P8C （DIP）
- FilterWithout
- Entry Angle90° Angle
- LEDNo
- Color - ResinBlack
- Electrical
- Current - Maximum per Contact1.50A
- Voltage - Maximum125V
- Contact Resistance30 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinPBT UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
