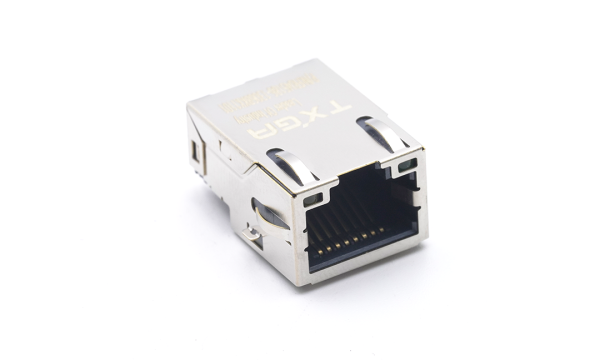

FRJ45186 RJ45 10P8C 90°Angle 1Port 100Base-T (LED)(Canceled No.1,8,10Circuits)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryRJ45 connector -PCB Socket 10P8C （SMT）
- Filter100Base-T
- Entry Angle90° Angle
- LEDYes
- Color - ResinBlack
- Electrical
- Current - Maximum per Contact1.50A
- Voltage - Maximum125V
- Contact Resistance30 mΩ Max
- Insulation Resistance500 MΩ Min
- Withstanding Voltage1000V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinLCP UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
