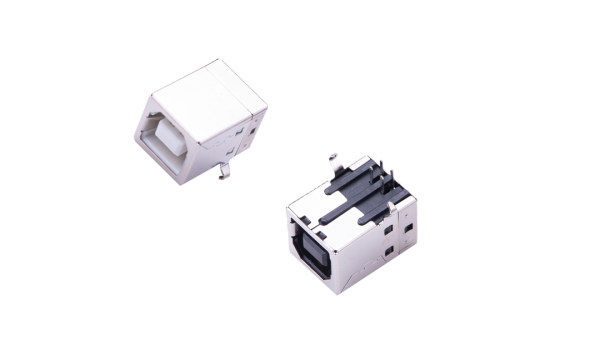

FUS213 USB B-type 4Circuits 90°Angle Female(DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
-

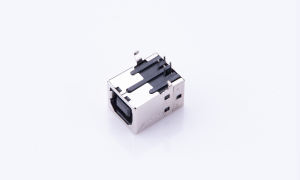

FUS213-FDBK6K
USB B-type 4Circuits 90°Angle Female(DIP)
Stock(pcs) 69 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-15|timezoneDate}} -

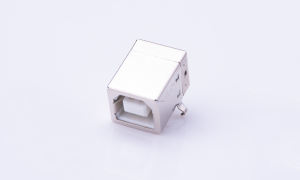

FUS213-FDBW1K
USB B-type 4Circuits 90°Angle Female(DIP)
Stock(pcs) 157 Status Active MPQ 100 MOQ 1000 Lead time Estimated delivery date when out of stock {{2026-04-15|timezoneDate}}
- Category
- CategoryUSB B-type 4Circuits 90°Angle Female(DIP)
- Circuits4
- Electrical
- Current - Maximum per Contact1.50A
- Voltage - Maximum30V
- Contact Resistance30 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalPhosphor Bronze
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinThermoplastic Polyesters UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
