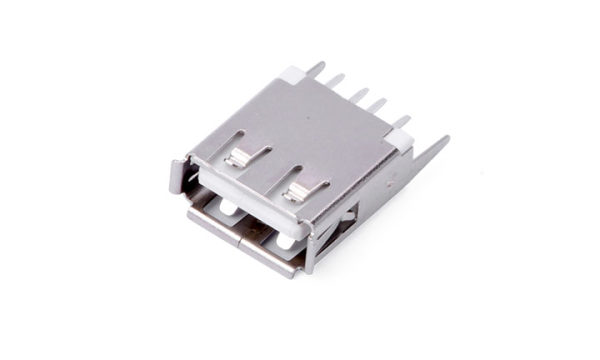

FUS220 USB A-type 4Circuits 180°Vertical Female(DIP)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryUSB A-type 4Circuits 180°Vertical Female(DIP)
- Circuits4
- Electrical
- Current - Maximum per Contact1.00A
- Voltage - Maximum30V
- Contact Resistance30 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+85ºC
- Material and Plating
- Material-MetalCopper alloy
- Material - Plating MatingGold
- Material - Plating TerminationTin
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
