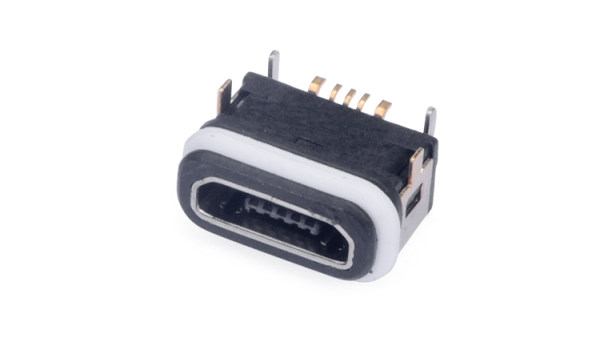

FUS465 Waterproof Micro USB 5Circuits 90°Angle Female(SMT)
-
EU RoHS
Compliant(2011/65/EU) -
EU REACH
Dose not contain REACH SVHC(1907/2006/EC) -
EU ELV
Compliant(2000/53/EC)
- Category
- CategoryWaterproof Micro USB 5Circuits 90°Angle Female(SMT)
- Circuits5
- Ingress Protection RatingIPX7
- Electrical
- Current - Maximum per Contact3.00A
- Voltage - Maximum30V
- Contact Resistance30 mΩ Max
- Insulation Resistance1000 MΩ Min
- Withstanding Voltage500V AC r.m.s
- Temperature Range operating-40ºC~+80ºC
- Material and Plating
- Material-MetalCopper Alloy
- Material - Plating MatingGold
- Material - Plating TerminationGold
- Material - ResinThermoplastic UL94V-0
- Compatible Parts
- Pulg-
- Receptacle-
- Terminal-
- Assembly shell-
