F001M8-SA04PRD0-01
M8X1.0插座 ,A 编码 ,4位 ,针 ,90°直角 ,通孔焊接

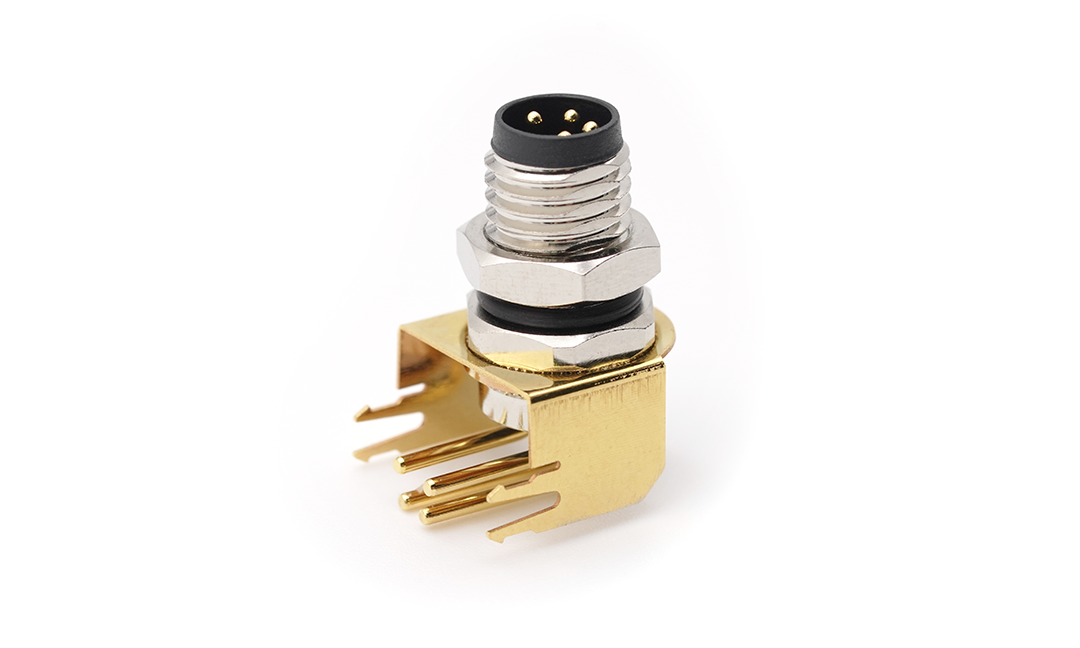

M8X1.0 Socket, A-Coded, 4Circuits, Pin, 90° Angle, Through Hole
Product Number：F001M8-SA04PRD0-01
Production Status： Active
M8X1.0 Socket, A-Coded, 4Circuits, Pin, 90° Angle, Through Hole
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{17.926902|tradeCurrencySymbol({digits:6})}}
10+ {{16.598983|tradeCurrencySymbol({digits:6})}}
50+ {{14.773095|tradeCurrencySymbol({digits:6})}}
100+ {{13.611166|tradeCurrencySymbol({digits:6})}}
500+ {{12.283247|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 200
MPQ 500

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M8 Circular Connector
Style
Socket
Gender
Male
Coding
A coding
Shielded
Shielded
Number of Positions
4Circuits
Contacts Type
pin
Orientation
Right angle(90°)
Colour
Black
Current(Max)
4A
Voltage(Max)
60V
Contact Resistance
8 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Waterproof / Dustproof
Yes
Ingress Protection
IP67
Panel Mount Feature
Front nut
Mounting Thread
M8x1.0
Mounting Style
Through hole
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
Metal
Locking Material
Metal
Packaging
PE Bag

Product Drawings

F001M8-SXXXPRD0-01-1.pdf

3D Drawings

F001M8-SA04PRD0-01.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
