F004M5-SA04PSW0-01

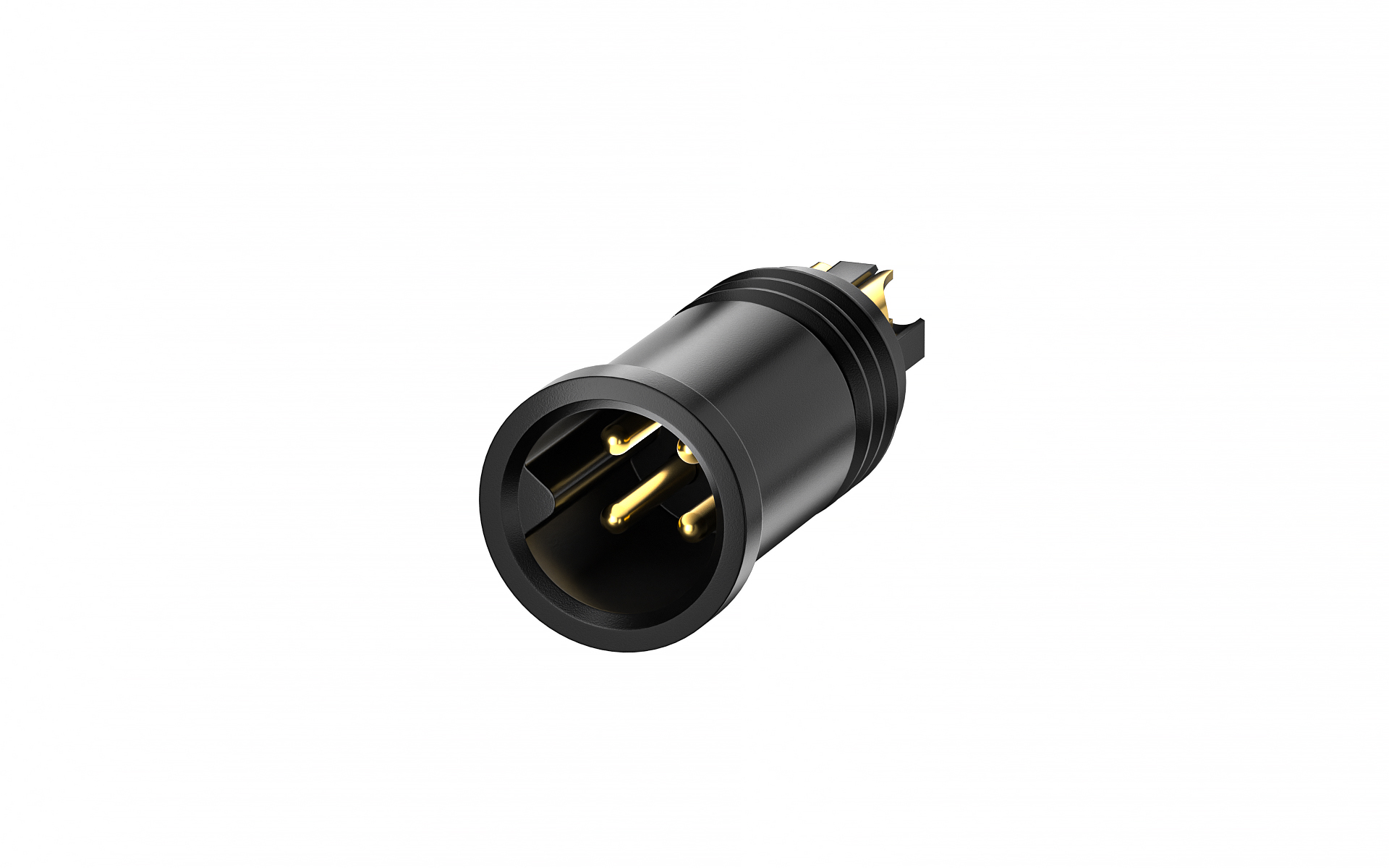

M5X0.5 插芯组件 ,插座 ,A编码 ,4位 ,针 ,180°垂直 ,焊接
M5X0.5 true insert, Socket, A-Coded, 4Circuits, Pin, 180° Vertical, Soldering
Product Number：F004M5-SA04PSW0-01
Production Status： Active
M5X0.5 true insert, Socket, A-Coded, 4Circuits, Pin, 180° Vertical, Soldering
M5X0.5 true insert, Socket, A-Coded, 4Circuits, Pin, 180° Vertical, Soldering
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{8.94727|tradeCurrencySymbol({digits:6})}}
10+ {{8.293588|tradeCurrencySymbol({digits:6})}}
50+ {{7.394776|tradeCurrencySymbol({digits:6})}}
100+ {{6.822804|tradeCurrencySymbol({digits:6})}}
500+ {{6.169122|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 1
MPQ 1000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
M5 Circular Connector
Style
Socket
Gender
Male
Coding
A coding
Shielded
Non-shielded
Number of Positions
4Circuits
Contacts Type
pin
Orientation
Vertical(180°)
Colour
Black
Current(Max)
1A
Voltage(Max)
60V
Contact Resistance
3 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
800V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Waterproof / Dustproof
No
Panel Mount Feature
N/A
Mounting Style
Soldering
Durability (Mating Cycles Max.)
100
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Material of Housing
N/A
Locking Material
N/A
Packaging
PE Bag

Product Drawings

F004M5-SAXXPSW0-01.pdf

3D Drawings

F004M5-SA04PSW0-01.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
