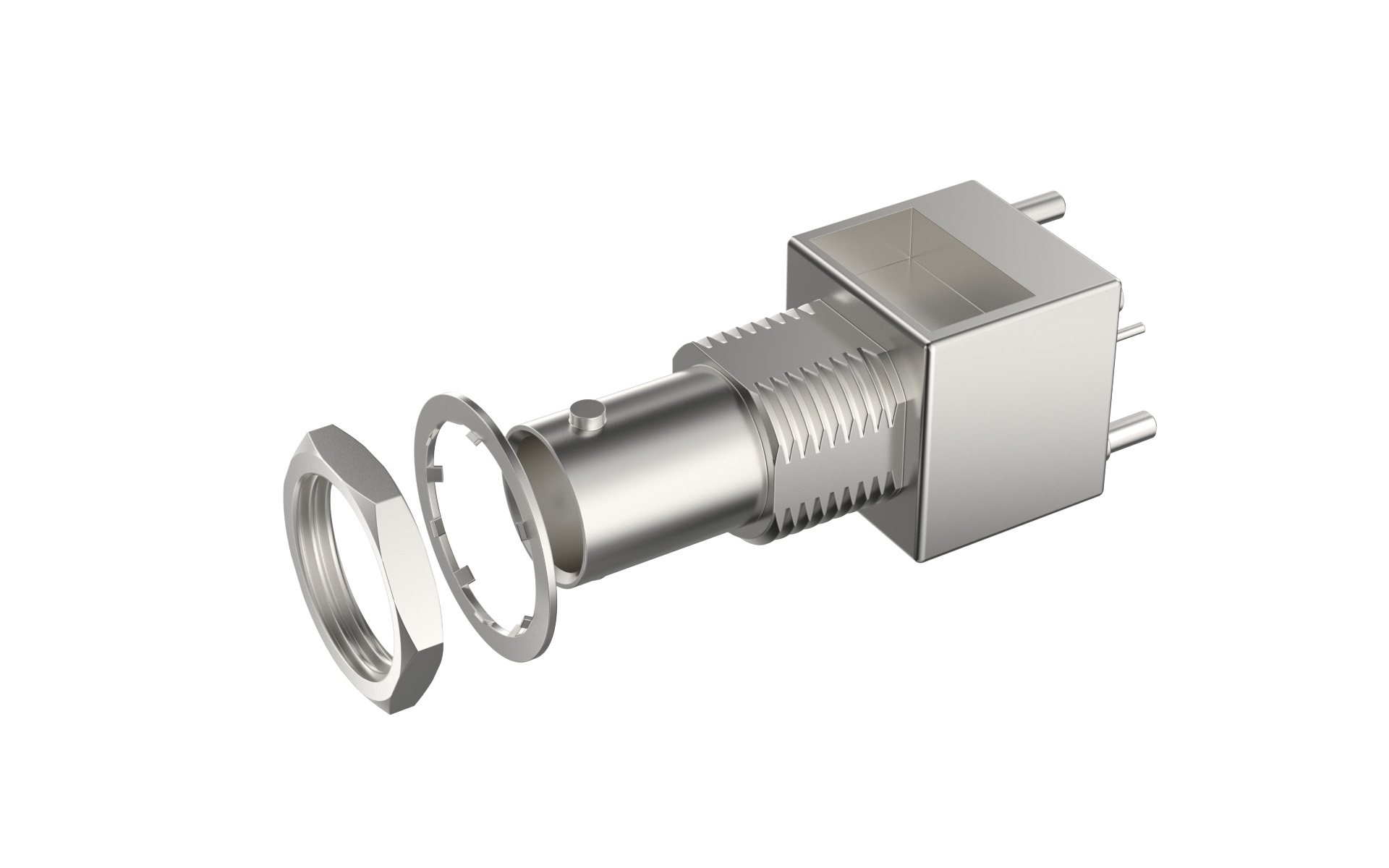

F00BNC-J75S0BHD-02 BNC, Jack, 75Ω, socket, Vertical(180°), Through hole，(With nut and washer)

F00BNC-J75S0BHD-02

BNC, 插座, 75Ω, 孔, 垂直(180度), 通孔焊接,（带螺母与垫片）

BNC, Jack, 75Ω, socket, Vertical(180°), Through hole，(With nut and washer)

Product Number：F00BNC-J75S0BHD-02

Production Status： Active

BNC, Jack, 75Ω, socket, Vertical(180°), Through hole，(With nut and washer)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{5.328136\|tradeCurrencySymbol({digits:6})}}
20+	{{4.577541\|tradeCurrencySymbol({digits:6})}}
500+	{{4.446251\|tradeCurrencySymbol({digits:6})}}
1000+	{{4.221137\|tradeCurrencySymbol({digits:6})}}
5000+	{{4.10874\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 500

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

RF Connector

Product Category

BNC

Style

Socket

Number of Positions

1Circuit

Contacts Type

socket

Orientation

Vertical(180°)

Colour

White

Voltage(Max)

500V

Contact Resistance

1.5 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Impedance

75Ω

Frequency Range (Max.)

4 GHz

VSWR

1.5 Max

Panel Mount Feature

Front nut

Mounting Style

Through hole

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

POM

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

F00BNC-J75S0BHD-02.pdf

3D Drawings

F00BNC-J75S0BHD-02-REF .STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
