充电桩模块电源连接器 ,插头 ,4位 ,直端 ,交流 ,30KW
F00MPC-P04SA300-01

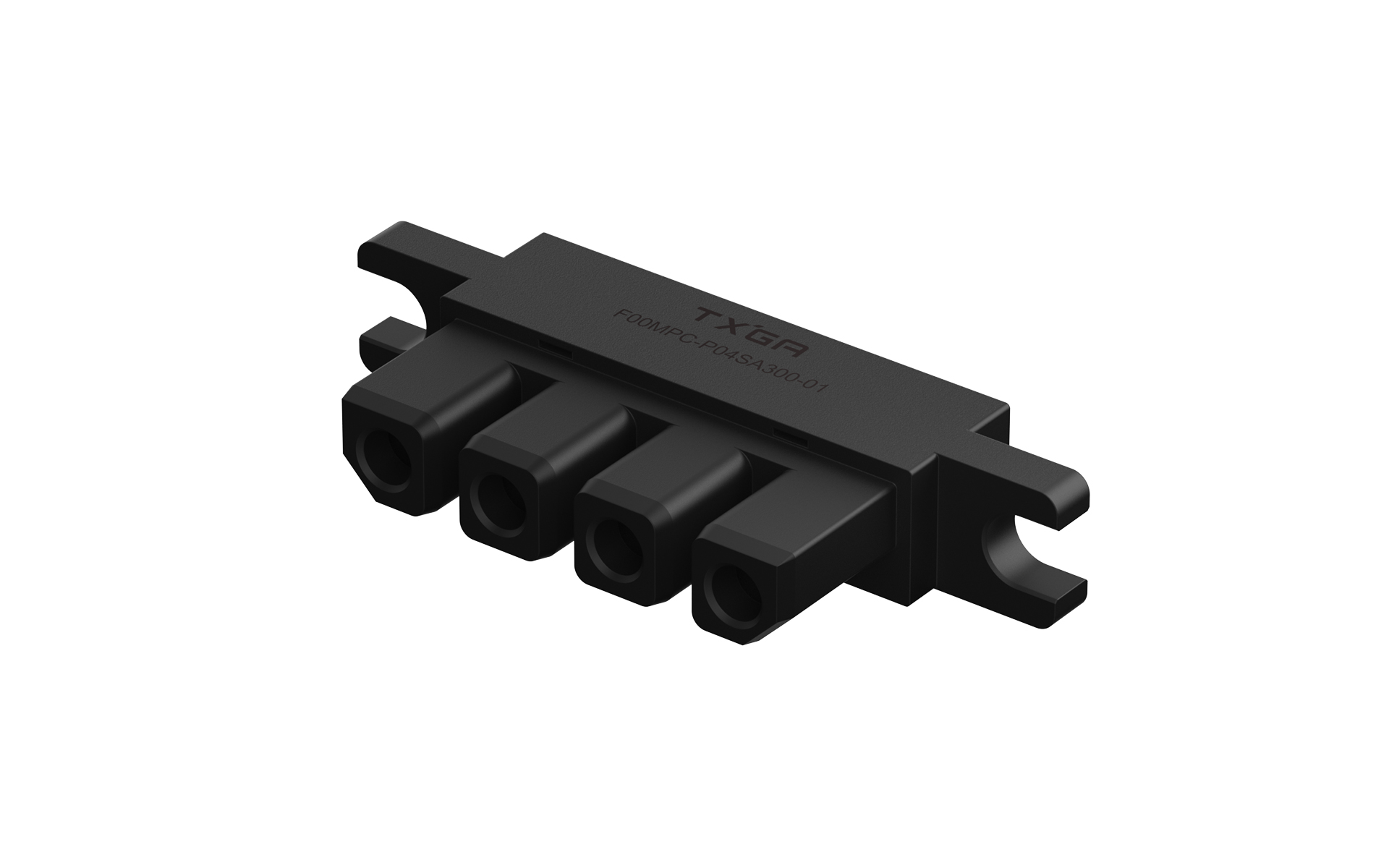

Charging pile module power connector, Plug, 4Circuits, 180°Vertical, AC, 30KW
F00MPC-P04SA300-01 Copy
Share this product
Stock(pcs)
6
Lead time

≦ 6 In stock

＞ 6 Estimated delivery date 2025-10-21

MPQ
1
MOQ
1000
Quantity Unit Price
1 $2.681734
10 $2.467603
50 $2.141308
100 $2.008751
500 $1.753834
1000 $1.396949
5000 $1.366359
10000 $1.345965

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Charging Pile Module Power Connector
Style
Plug
Gender
Female
Number of Positions
4Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
75A
Voltage(Max)
1000V
Contact Resistance
1 mΩ Max
Insulation Resistance
3000 MΩ Min
Withstanding Voltage
3000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Current Type
AC
Mechanical
Mounting Style
N/A
Material
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

F00MPC-P04SA300-01-2.pdf

3D Drawings

F00MPC-P04SA300-01-1.rar
Terminal
Crown lamella socket, ∅5, Silver plated, 3μm

F0CLCT-05004120-01

Crown lamella socket, ∅5, Silver plated, 3μm
Receptacle
Charging pile module power connector, Socket, 4Circuits, 90°Angle, AC, 30KW

F00MPC-S04RA300-01

Charging pile module power connector, Socket, 4Circuits, 90°Angle, AC, 30KW
Assemblies
Screw, Steel, Nickel plated, M4x0.7 L15

FSM040-10100200-01

Screw, Steel, Nickel plated, M4x0.7 L15
