充电桩模块电源连接器 ,插头 ,14位 ,直端 ,直流 ,30KW
F00MPC-P14SD300-01

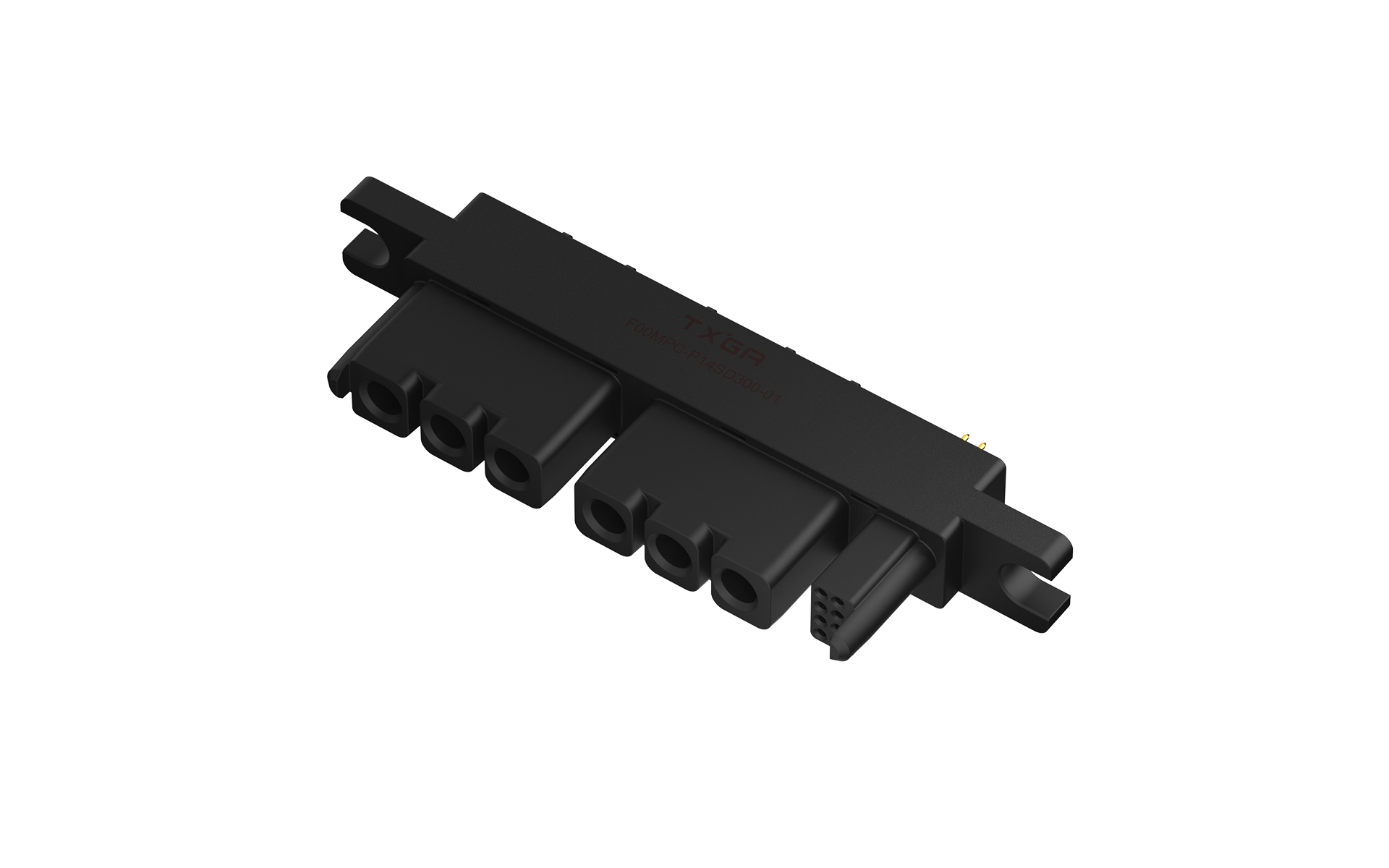

Charging pile module power connector, Plug, 14Circuits, 180°Vertical, DC, 30KW
F00MPC-P14SD300-01 Copy
Share this product
Stock(pcs)
36
Lead time

≦ 36 In stock

＞ 36 Estimated delivery date 2026-01-03

MPQ
1
MOQ
1000
Quantity Unit Price
1 $11.361960
10 $10.366091
50 $9.189155
100 $8.691221
500 $7.469018
1000 $6.043114
5000 $5.907314
10000 $5.816781

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Charging Pile Module Power Connector
Style
Plug
Gender
Female
Number of Positions
14Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
75A
Voltage(Max)
1000V
Contact Resistance
12 mΩ Max
Insulation Resistance
3000 MΩ Min
Withstanding Voltage
3000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Current Type
DC
Mechanical
Mounting Style
N/A
Material
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PBT
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

F00MPC-P14SD300-01-1.pdf

3D Drawings

F00MPC-P14SD300-01-2.rar
Terminal
Crown lamella socket, ∅5, Silver plated, 3μm

F0CLCT-05004120-01

Crown lamella socket, ∅5, Silver plated, 3μm
Receptacle
Charging pile module power connector, Socket, 14Circuits, 90°Angle, DC, 30KW

F00MPC-S14RD300-01

Charging pile module power connector, Socket, 14Circuits, 90°Angle, DC, 30KW
Assemblies
Screw, Steel, Nickel plated, M4x0.7 L15

FSM040-10100200-01

Screw, Steel, Nickel plated, M4x0.7 L15
