SMA ,插座 ,50欧姆 ,孔 ,180°垂直 ,焊接 ,通孔焊接(附防尘帽)
F00SMA-J50S0SHW-01

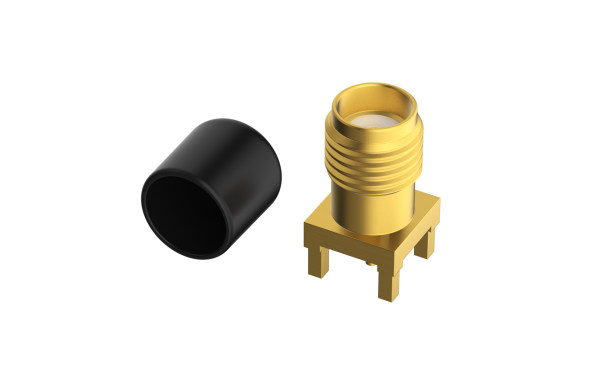

SMA, Jack, 50Ohm, socket, 180° Vertical, PCB welding, Through Hole (With dust cap)
F00SMA-J50S0SHW-01 Copy
Share this product
Stock(pcs)
670
Lead time

≦ 670 In stock

＞ 670 Estimated delivery date 2025-10-14

MPQ
200
MOQ
1000
Quantity Unit Price
1 $1.334101
20 $1.146161
500 $1.113287
1000 $1.056921
5000 $1.028779
10000 $1.000556

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
RF Connector
Product Category
SMA
Features
Standard
Style
Socket
Number of Positions
1Circuit
Contacts Type
socket
Orientation
Vertical(180°)
Colour
White
Electrical
Voltage(Max)
335V
Contact Resistance
3 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Impedance
50Ω
Frequency Range (Max.)
6 GHz
VSWR
1.35 Max
Mechanical
Fastening Method
No
Mounting Style
Through hole
Material
Material-Contact
Brass
Plating
Gold plated
Plating Thickness
0.2μm
Material-Resin
PTFE
Flammability Rating
UL94 V-0
Packaging
Packaging
PE Bag

Product Drawings

F00SMA-J50S0SHW-01-2.pdf

3D Drawings

F00SMA-J50S0SHW-01-1.rar
