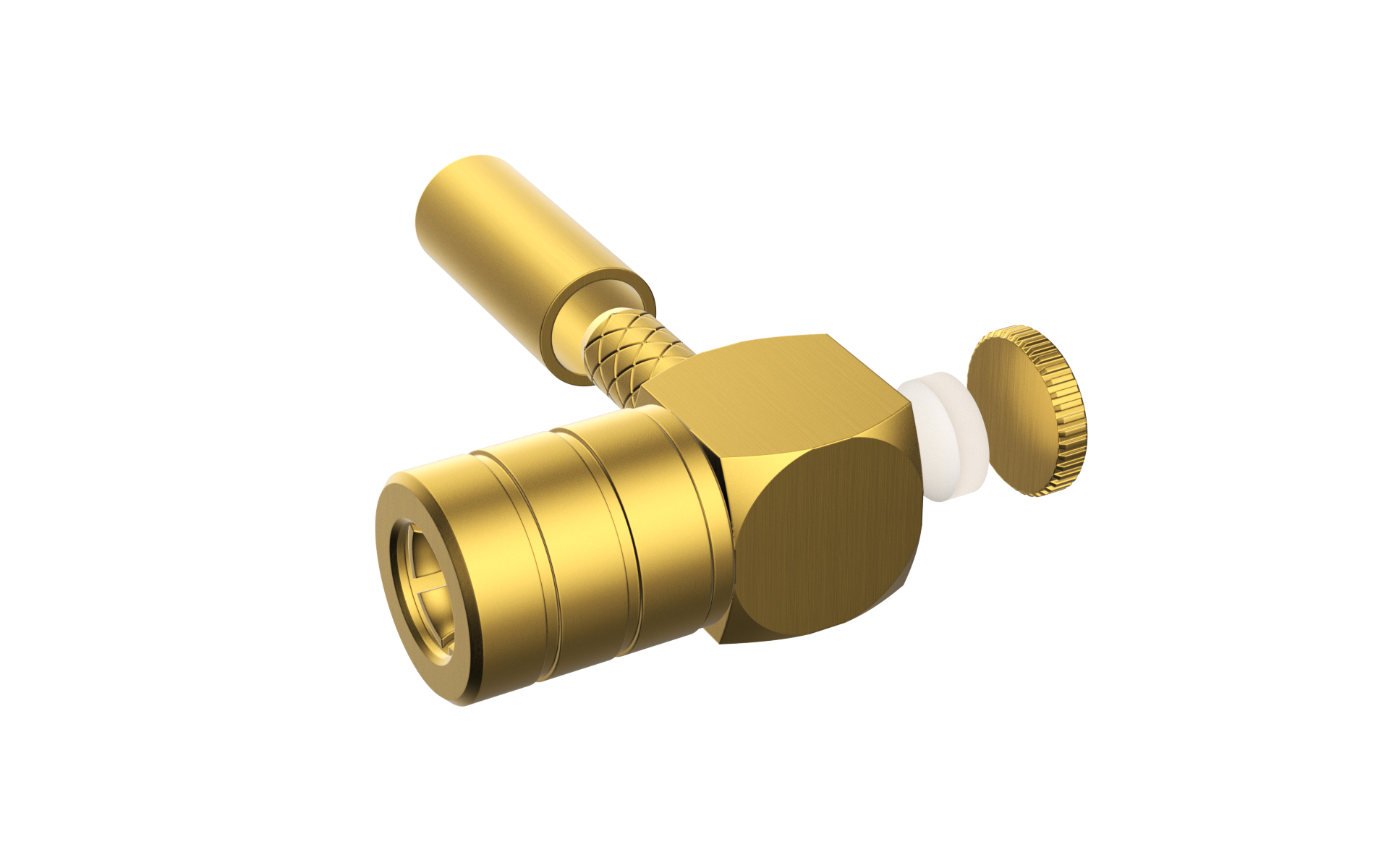

F00SMB-P75S0B0W-01 SMB, Plug, 75Ohm, socket, 90° Angle, , Soldering

F00SMB-P75S0B0W-01

SMB, Plug, 75Ohm, socket, 90° Angle, , Soldering

Product Number：F00SMB-P75S0B0W-01

Production Status： Active

SMB, Plug, 75Ohm, socket, 90° Angle, , Soldering

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{11.495449\|tradeCurrencySymbol({digits:6})}}
20+	{{9.876041\|tradeCurrencySymbol({digits:6})}}
500+	{{9.592783\|tradeCurrencySymbol({digits:6})}}
1000+	{{9.107099\|tradeCurrencySymbol({digits:6})}}
5000+	{{8.864602\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 194

Lead time Ship Immediately

MOQ 500

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

RF Connector

Product Category

SMB

Style

Plug

Number of Positions

1Circuit

Contacts Type

socket

Orientation

Right angle(90°)

Colour

White

Voltage(Max)

335V

Contact Resistance

6 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Impedance

75Ω

Frequency Range (Max.)

3 GHz

VSWR

1.45 Max

Panel Mount Feature

N/A

Mounting Style

Soldering

Material-Contact

Brass

Plating

Gold plated

Plating Thickness

0.2μm

Material-Resin

PTFE

Flammability Rating

UL94 V-0

Packaging

PE Bag

Product Drawings

F00SMB-P75S0B0W-01-2.pdf

3D Drawings

F00SMB-P75S0B0W-01-1.rar

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
