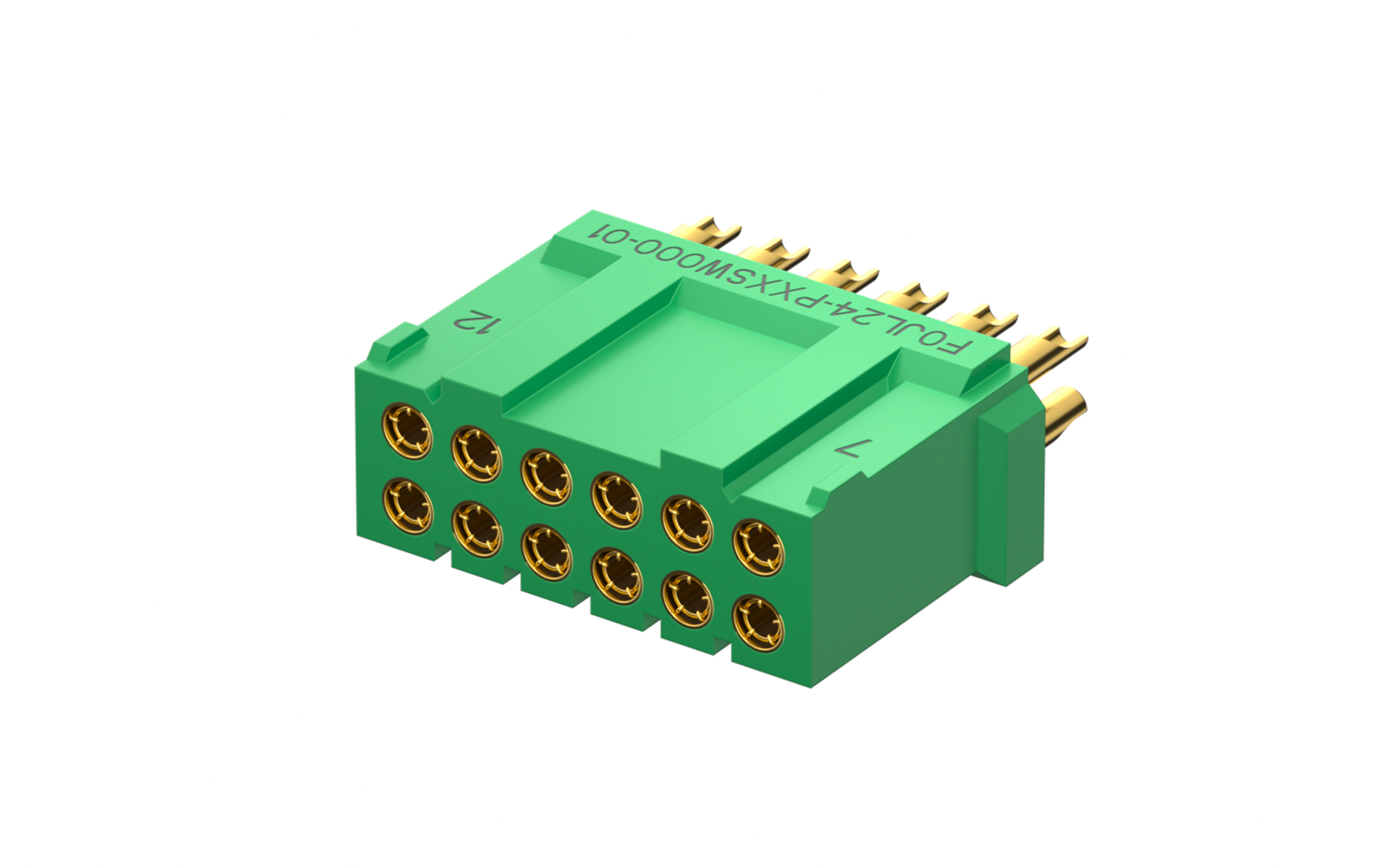

JL24 ,插头 ,12位 ,直端 ,焊线式
JL24, Plug, 12Circuits, 180°Vertical, Soldering
Product Number：F0JL24-P12SW000-01
Production Status： Active
JL24, Plug, 12Circuits, 180°Vertical, Soldering
JL24, Plug, 12Circuits, 180°Vertical, Soldering
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

{{ videoIndex + 1 }} / {{ videos.length }}
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{78.561552|tradeCurrencySymbol({digits:6})}}
10+ {{74.407153|tradeCurrencySymbol({digits:6})}}
50+ {{66.098353|tradeCurrencySymbol({digits:6})}}
100+ {{61.943955|tradeCurrencySymbol({digits:6})}}
500+ {{53.635156|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 0
Lead time {{product.leadDate|timezoneDate}}
MOQ 10
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Printed Circuit Connector
Product Category
JL24
Style
Plug
Pitch
2mm
Row Option
Dual row
Number of Positions
12Circuits
Orientation
Vertical(180°)
Colour
Green
Current(Max)
1A
Voltage(Max)
300V
Contact Resistance
12.5 mΩ Max
Insulation Resistance
5000 MΩ Min
Withstanding Voltage
1000V AC r.m.s
Operating Temperature Range
-55ºC~+125ºC
Mounting Style
Soldering
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
PA66
Flammability Rating
UL94 V-0
Packaging
Tube
