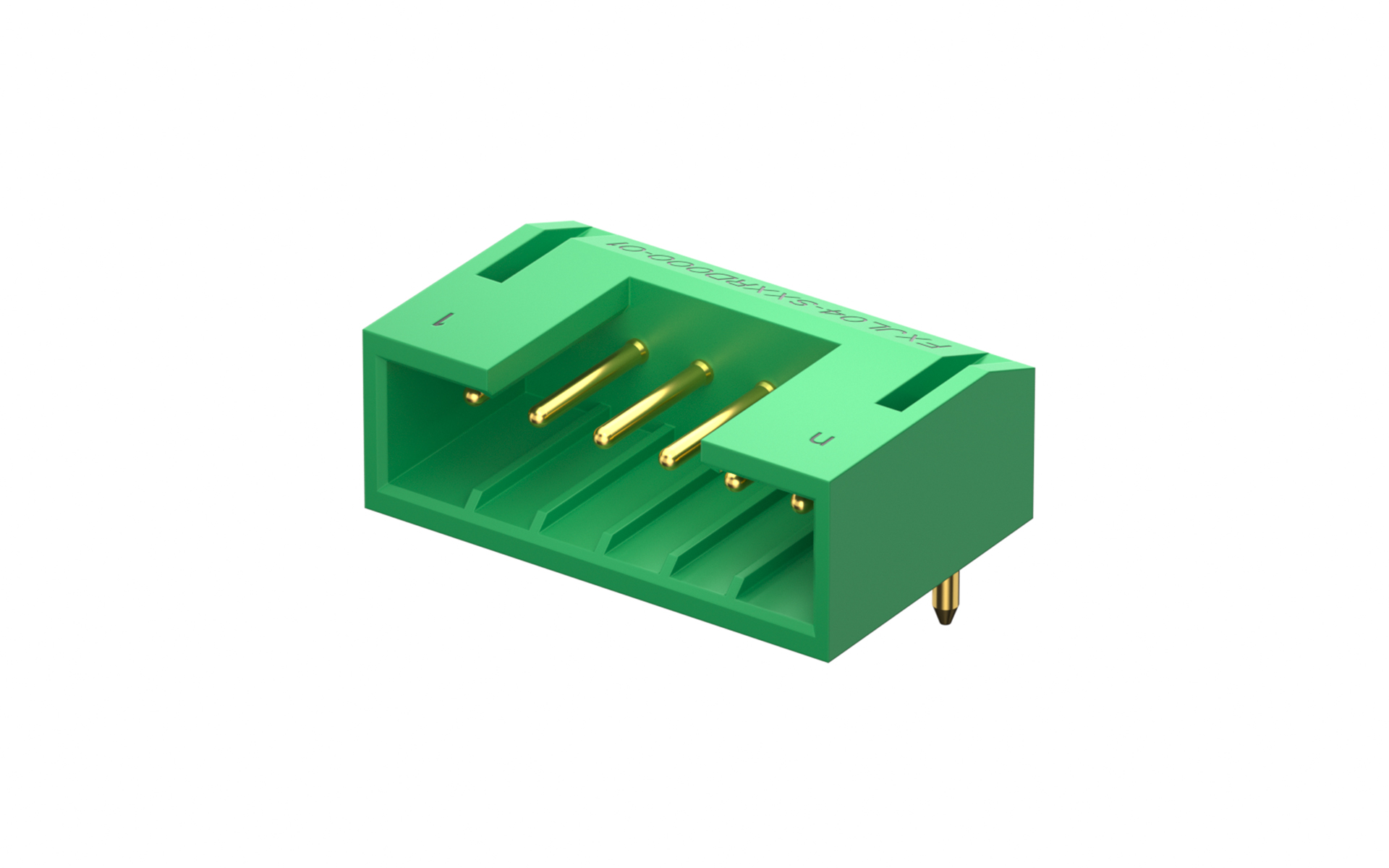

F1JL04-S06RD000-01 JL4, Socket, 6Circuits, Right angle(90°), Through hole

F1JL04-S06RD000-01

JL4, Socket, 6Circuits, Right angle(90°), Through hole

Product Number：F1JL04-S06RD000-01

Production Status： Active

JL4, Socket, 6Circuits, Right angle(90°), Through hole

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{36.662738\|tradeCurrencySymbol({digits:6})}}
10+	{{34.790598\|tradeCurrencySymbol({digits:6})}}
50+	{{30.734295\|tradeCurrencySymbol({digits:6})}}
100+	{{28.706144\|tradeCurrencySymbol({digits:6})}}
500+	{{22.75384\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 10

MPQ 20000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Printed Circuit Connector

Product Category

JL4

Style

Socket

Pitch

2mm

Row Option

Single row

Number of Positions

6Circuits

Orientation

Right angle(90°)

Colour

Green

Current(Max)

Voltage(Max)

300V

Contact Resistance

12.5 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

1000V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Mounting Style

Through hole

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.1μm

Material-Resin

PA66

Flammability Rating

UL94 V-0

Packaging

Tube

Product Drawings

FXJL04-SXXRD000-01.pdf
