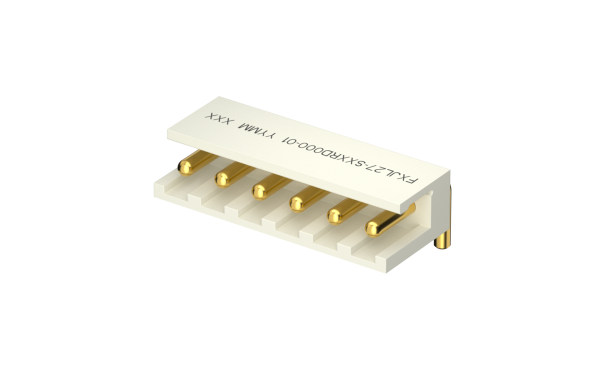

F1JL27-S05RD000-01 JL27, Socket, 5Circuits, 90°Angle, Through Hole

F1JL27-S05RD000-01

JL27, Socket, 5Circuits, 90°Angle, Through Hole

Product Number：F1JL27-S05RD000-01

Production Status： Active

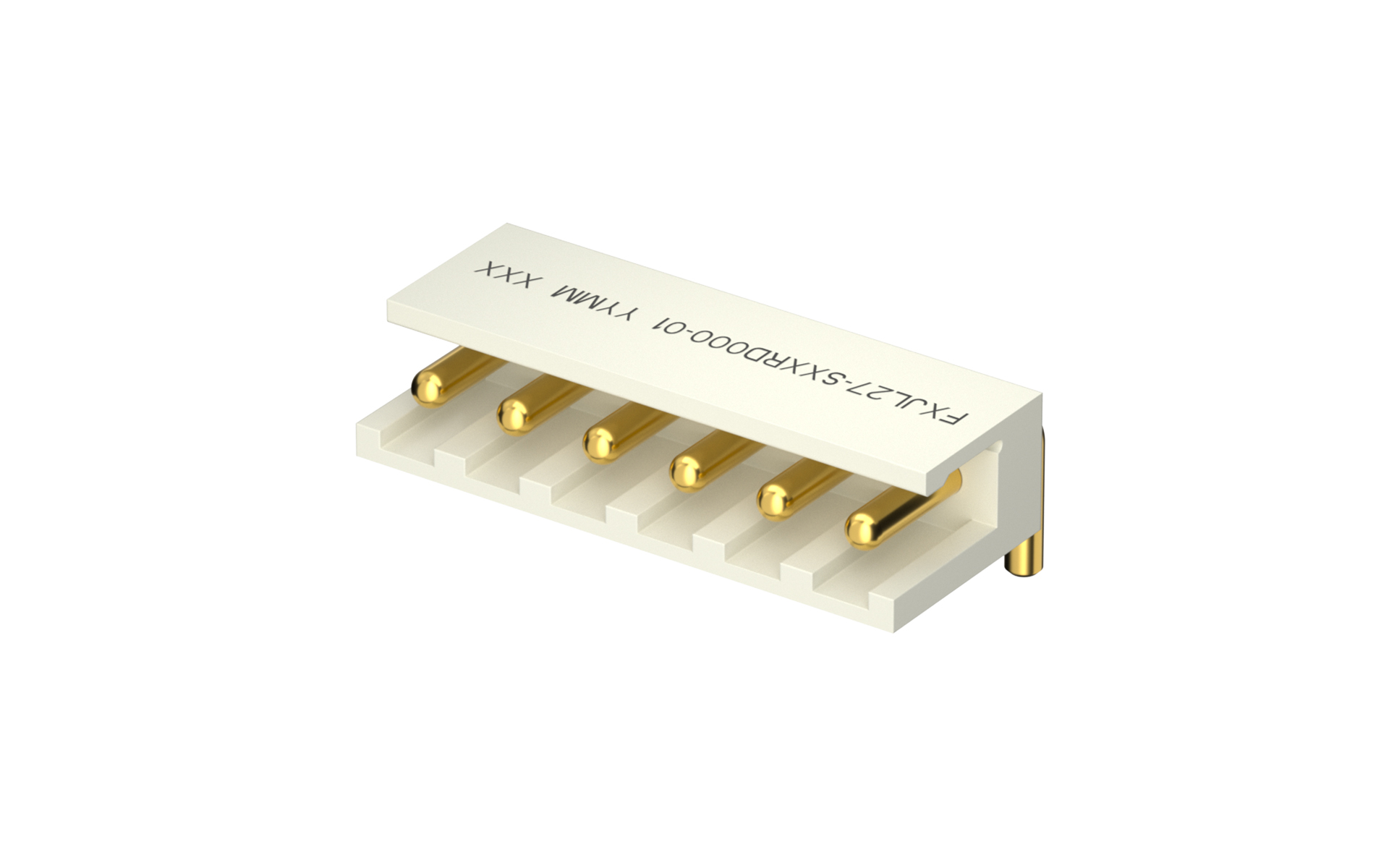

JL27, Socket, 5Circuits, 90°Angle, Through Hole

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{51.768636\|tradeCurrencySymbol({digits:6})}}
10+	{{49.00576\|tradeCurrencySymbol({digits:6})}}
50+	{{43.480008\|tradeCurrencySymbol({digits:6})}}
100+	{{40.717132\|tradeCurrencySymbol({digits:6})}}
500+	{{35.191379\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 3

Lead time Ship Immediately

MOQ 10

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Printed Circuit Connector

Product Category

JL27

Style

Socket

Pitch

3.96mm

Row Option

Single row

Number of Positions

5Circuits

Orientation

Right angle(90°)

Colour

Natural

Current(Max)

13A

Voltage(Max)

250V

Contact Resistance

3.8 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

1500V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Mounting Style

Through hole

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

0.1μm

Material-Resin

PA66

Flammability Rating

UL94 V-0

Packaging

Tube

Product Drawings

FXJL27-SXXRD000-01.pdf
