FBA00007-02S2003K
纽扣电池座 2位 贴片 (CR2032)
Button Battery Connector, 2Circuits (SMT) (CR2032)
Product Number：FBA00007-02S2003K
Production Status： Active
Button Battery Connector, 2Circuits (SMT) (CR2032)

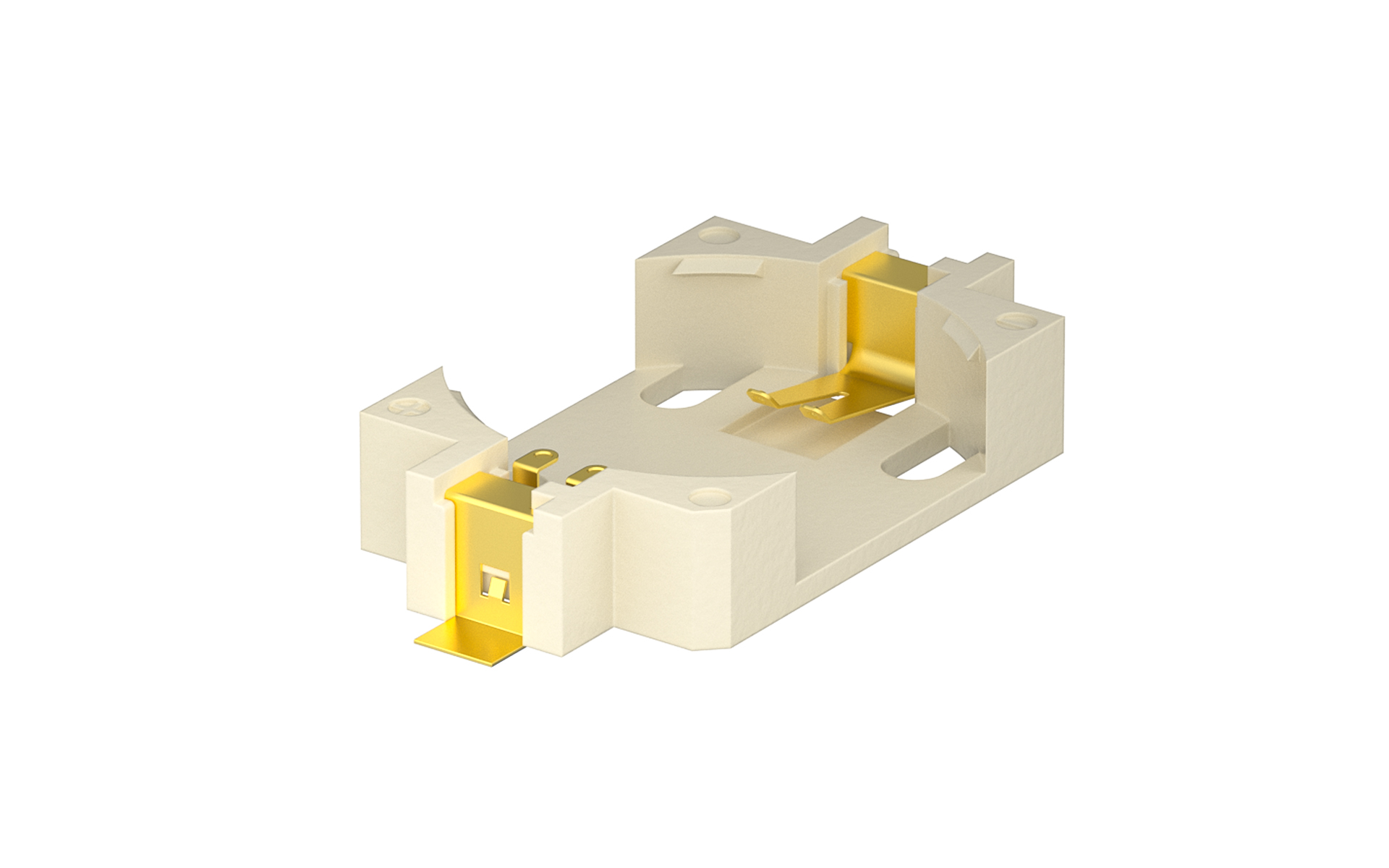

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{2.357582|tradeCurrencySymbol({digits:6})}}
10+ {{2.223506|tradeCurrencySymbol({digits:6})}}
50+ {{1.955352|tradeCurrencySymbol({digits:6})}}
100+ {{1.821275|tradeCurrencySymbol({digits:6})}}
500+ {{1.553123|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 23
Lead time Ship Immediately
MOQ 600
MPQ 1200

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Battery Connector
Product Category
Button cell socket
Style
Socket
Number of Positions
2Circuits
Applicable Battery Model
CR2032
Orientation
Vertical(180°)
Colour
Natural
Voltage(Max)
3V
Contact Resistance
30 mΩ Max
Insulation Resistance
1000 MΩ Min
Withstanding Voltage
500V AC r.m.s
Operating Temperature Range
-40ºC~+105ºC
Mounting Style
SMT
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Tray

Product Drawings

FBA00007.pdf

3D Drawings

FBA00007-02S2003X_ref.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
