FBA25014-S02B2004K Button Battery Connector, 2Circuits (DIP) (CR2032)

FBA25014-S02B2004K

Button Battery Connector, 2Circuits (DIP) (CR2032)

Product Number：FBA25014-S02B2004K

Production Status： Active

Button Battery Connector, 2Circuits (DIP) (CR2032)

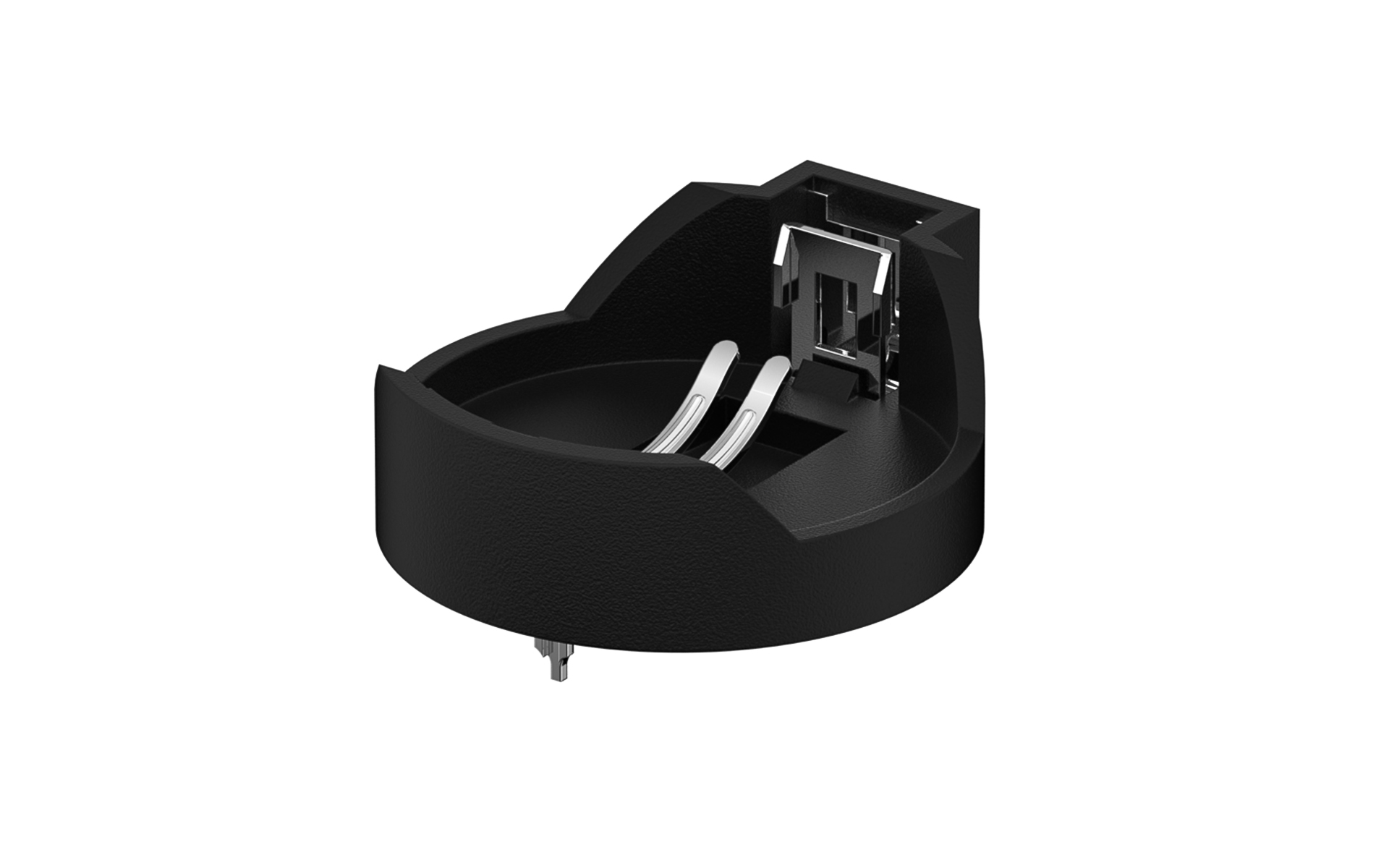

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{1.031282\|tradeCurrencySymbol({digits:6})}}
10+	{{0.970102\|tradeCurrencySymbol({digits:6})}}
50+	{{0.84774\|tradeCurrencySymbol({digits:6})}}
100+	{{0.786559\|tradeCurrencySymbol({digits:6})}}
500+	{{0.664198\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 1830

Lead time Ship Immediately

MOQ 3000

MPQ 1800

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Battery Connector

Product Category

Button cell socket

Style

Socket

Number of Positions

2Circuits

Applicable Battery Model

CR2032

Orientation

Vertical(180°)

Colour

Black

Voltage(Max)

Contact Resistance

20 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Mounting Style

Through hole

Material-Contact

Brass

Plating

Bright tin plated

Plating Thickness

2μm

Material-Resin

PBT

Flammability Rating

UL94 V-0

Packaging

Tray

Product Drawings

FBA25014-S02B2004K.pdf

3D Drawings

FBA25014-S02B2004K-REF .STEP

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
