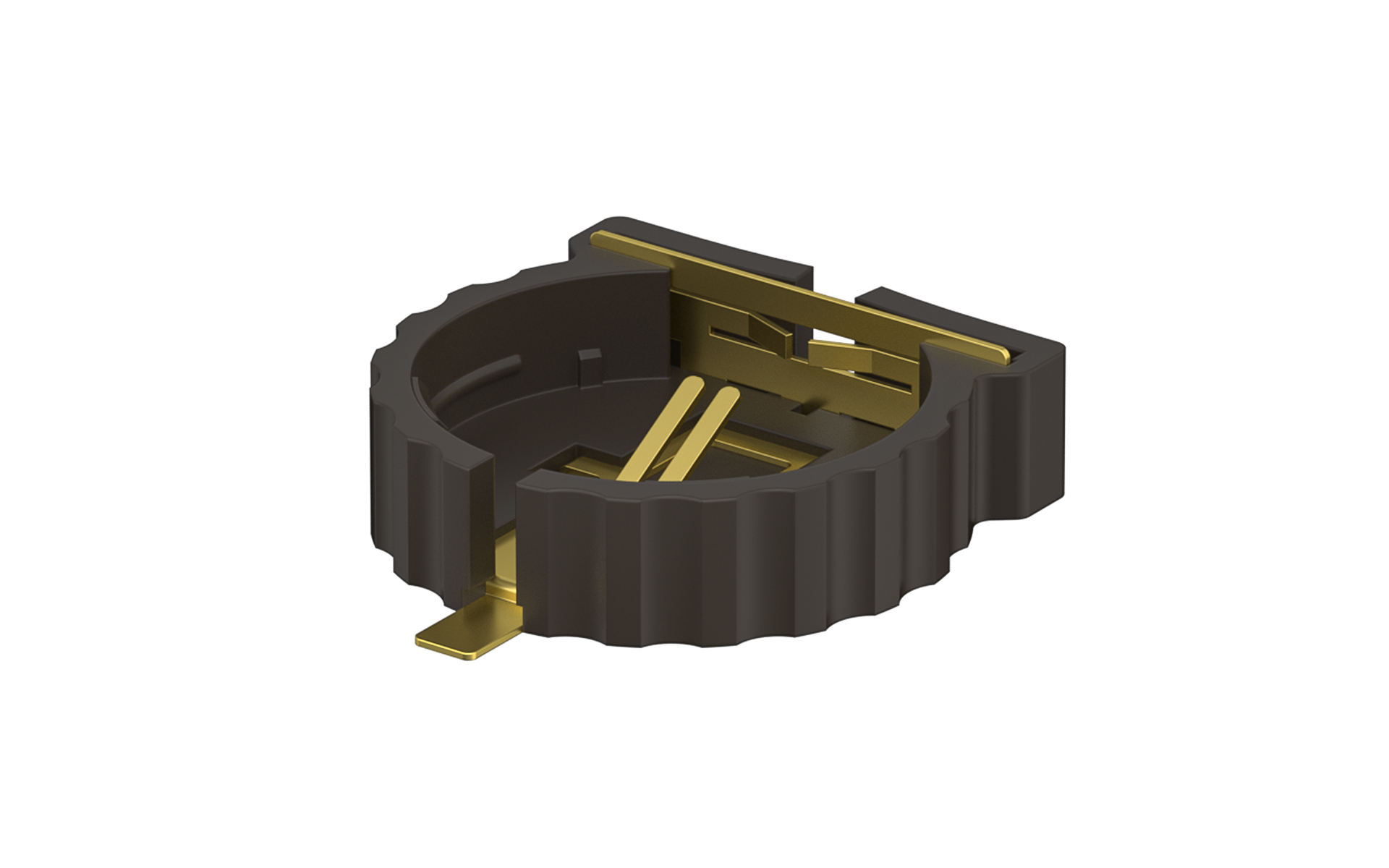

FBA75002-S02B2101L Button Battery Connector, 2Circuits (SMT) (CR1220)

FBA75002-S02B2101L

Button Battery Connector, 2Circuits (SMT) (CR1220)

Product Number：FBA75002-S02B2101L

Production Status： Active

Button Battery Connector, 2Circuits (SMT) (CR1220)

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

视频加载失败，请稍后重试。

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{2.029791\|tradeCurrencySymbol({digits:6})}}
10+	{{1.914356\|tradeCurrencySymbol({digits:6})}}
50+	{{1.683486\|tradeCurrencySymbol({digits:6})}}
100+	{{1.568051\|tradeCurrencySymbol({digits:6})}}
500+	{{1.337181\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 0

Lead time {{product.leadDate|timezoneDate}}

MOQ 1000

MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Battery Connector

Product Category

Button cell socket

Style

Socket

Number of Positions

2Circuits

Peg

With peg

Applicable Battery Model

CR1220

Orientation

Vertical(180°)

Colour

Brown

Voltage(Max)

Contact Resistance

30 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

500V AC r.m.s

Operating Temperature Range

-40ºC~+105ºC

Mounting Style

SMT

Material-Contact

Phosphor bronze

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

PPS

Flammability Rating

UL94 V-0

Packaging

Tube

Product Drawings

FBA75002.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
