FBB03502-F24S1143BKM
板对板连接器, 0.35mm, 母, 24位, 垂直(180度), 表面贴装, (组合高度0.6mm)
Board to Board Connector, 0.35mm, Female, 24Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
Product Number：FBB03502-F24S1143BKM
Production Status： Active
Board to Board Connector, 0.35mm, Female, 24Circuits, Vertical(180°), SMT, (Mated height 0.6mm)

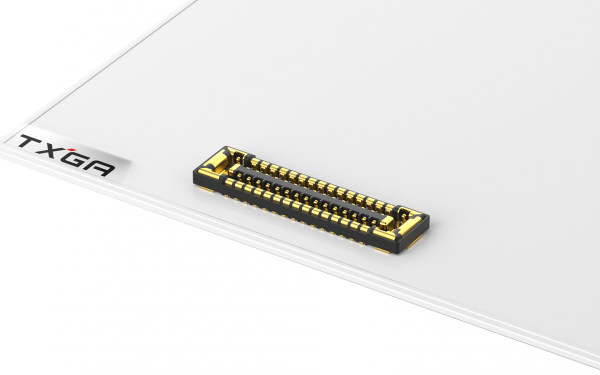

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{2.060463|tradeCurrencySymbol({digits:6})}}
100+ {{1.270619|tradeCurrencySymbol({digits:6})}}
1000+ {{1.133255|tradeCurrencySymbol({digits:6})}}
5000+ {{0.858526|tradeCurrencySymbol({digits:6})}}
15000+ {{0.532286|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 3715
Lead time Ship Immediately
MOQ 15000
MPQ 150000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.35mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Vertical(180°)
Colour
Black
Current(Max)
7A
Voltage(Max)
30V
Contact Resistance
90 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FBB03502-F series.pdf

3D Drawings

FBB03502-F24S1143BKM_ref.stp

Product Specifications

Product specification FBB03502 (REVA).pdf English Version

Instruction Documents

Instruction of application FBB03502.pdf
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Plug
Board to Board Connector, 0.35mm, Male, 24Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
FBB03502-M24S1143BKM
Board to Board Connector, 0.35mm, Male, 24Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
