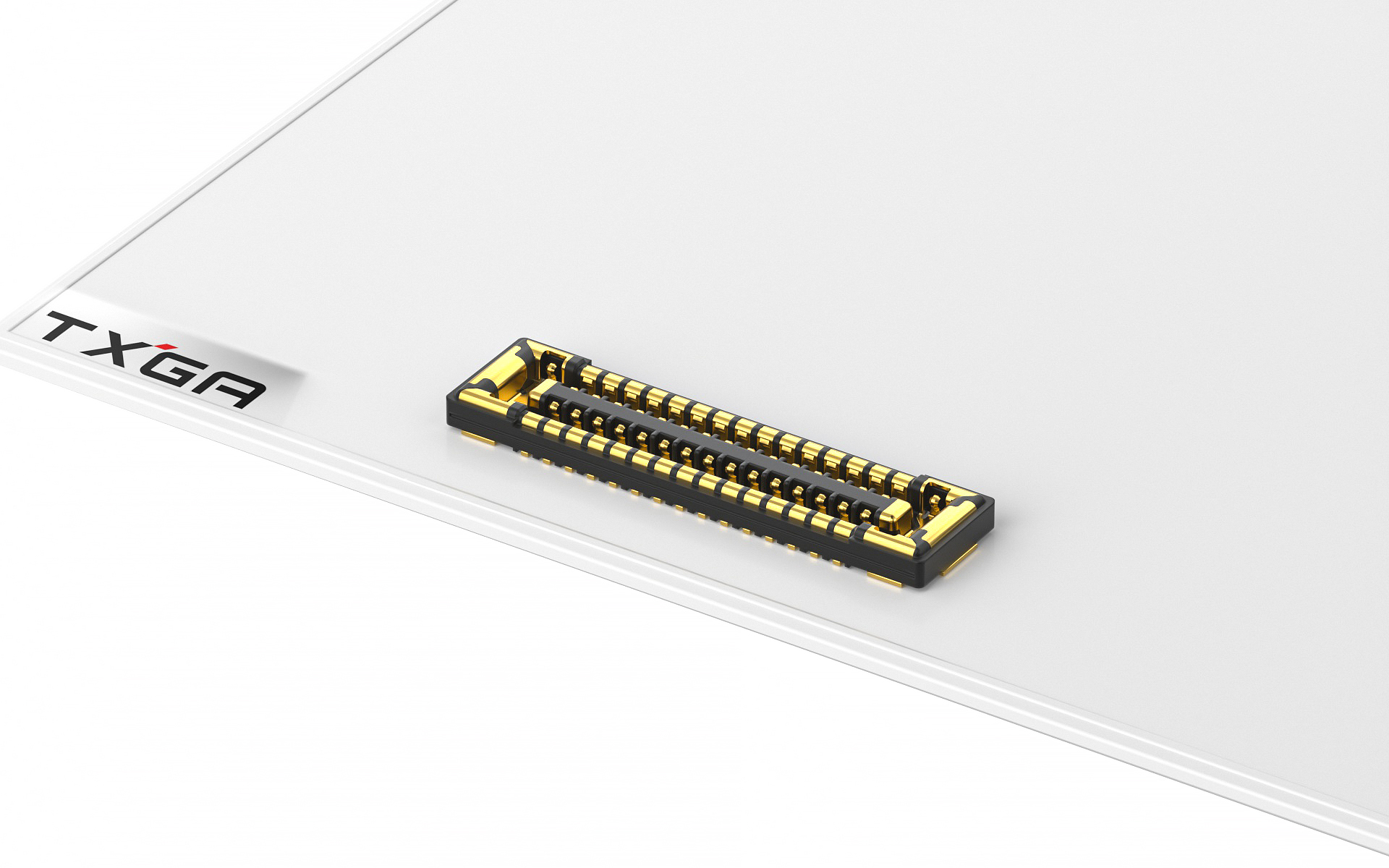

板对板连接器, 0.35mm, 母, 30位, 垂直(180度), 表面贴装, (组合高度0.6mm)
FBB03502-F30S1143BKM
Board to Board Connector, 0.35mm, Female, 30Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
FBB03502-F30S1143BKM Copy
Share this product
Stock(pcs)
502
Lead time

≦ 502 In stock

＞ 502 Estimated delivery date 2025-07-04

MPQ
15000
MOQ
15000
Quantity Unit Price
1 $0.293748
10 $0.211883
50 $0.192621
100 $0.182990
500 $0.165654
1000 $0.162283
5000 $0.159876
15000 $0.125204
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.35mm
Row Option
Dual row
Number of Positions
30Circuits
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
7A
Voltage(Max)
30V
Contact Resistance
90 mΩ Max
Insulation Resistance
50 MΩ Min
Withstanding Voltage
100V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB03502-F series

3D Drawings

FBB03502-F30S1143BKM_ref

Product Specifications

Product specification FBB03502 (REVA)

Instruction Documents

Instruction of application FBB03502
Plug
Board to Board Connector, 0.35mm, Male, 30Circuits, Vertical(180°), SMT, (Mated height 0.6mm)

FBB03502-M30S1143BKM

Board to Board Connector, 0.35mm, Male, 30Circuits, Vertical(180°), SMT, (Mated height 0.6mm)
