板对板连接器,0.4mm,公,40位,垂直(180度),表面贴装 (组合高度0.8mm)
FBB04009-M40S1143BKM

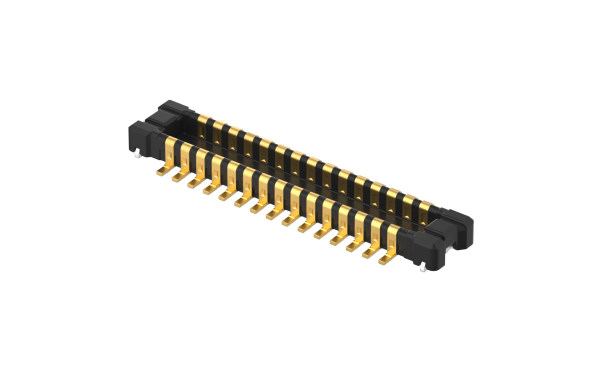

Board to Board Connector, 0.4mm, Male, 40Circuits, Vertical(180°), SMT (Mated height 0.8mm)
FBB04009-M40S1143BKM Copy
Share this product
Stock(pcs)
3866
Lead time

≦ 3866 In stock

＞ 3866 Estimated delivery date 2025-11-07

MPQ
5000
MOQ
10000
Quantity Unit Price
1 $0.655981
10 $0.333954
50 $0.286246
100 $0.262392
500 $0.219456
1000 $0.159821
5000 $0.157436
10000 $0.155050

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.4mm
Row Option
Dual row
Number of Positions
40Circuits
Height(mm)
H0.67
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.3A
Voltage(Max)
60V
Contact Resistance
90 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
150V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.1μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB04009-M series

3D Drawings

FBB04009-M40S1143BKM

Product Specifications

Product specification FBB04009

Instruction Documents

Instruction of application FBB04009
Receptacle
Board to Board Connector, 0.4mm, Female, 40Circuits, Vertical(180°), SMT (Mated height 0.8mm)

FBB04009-F40S1143BKM

Board to Board Connector, 0.4mm, Female, 40Circuits, Vertical(180°), SMT (Mated height 0.8mm)
