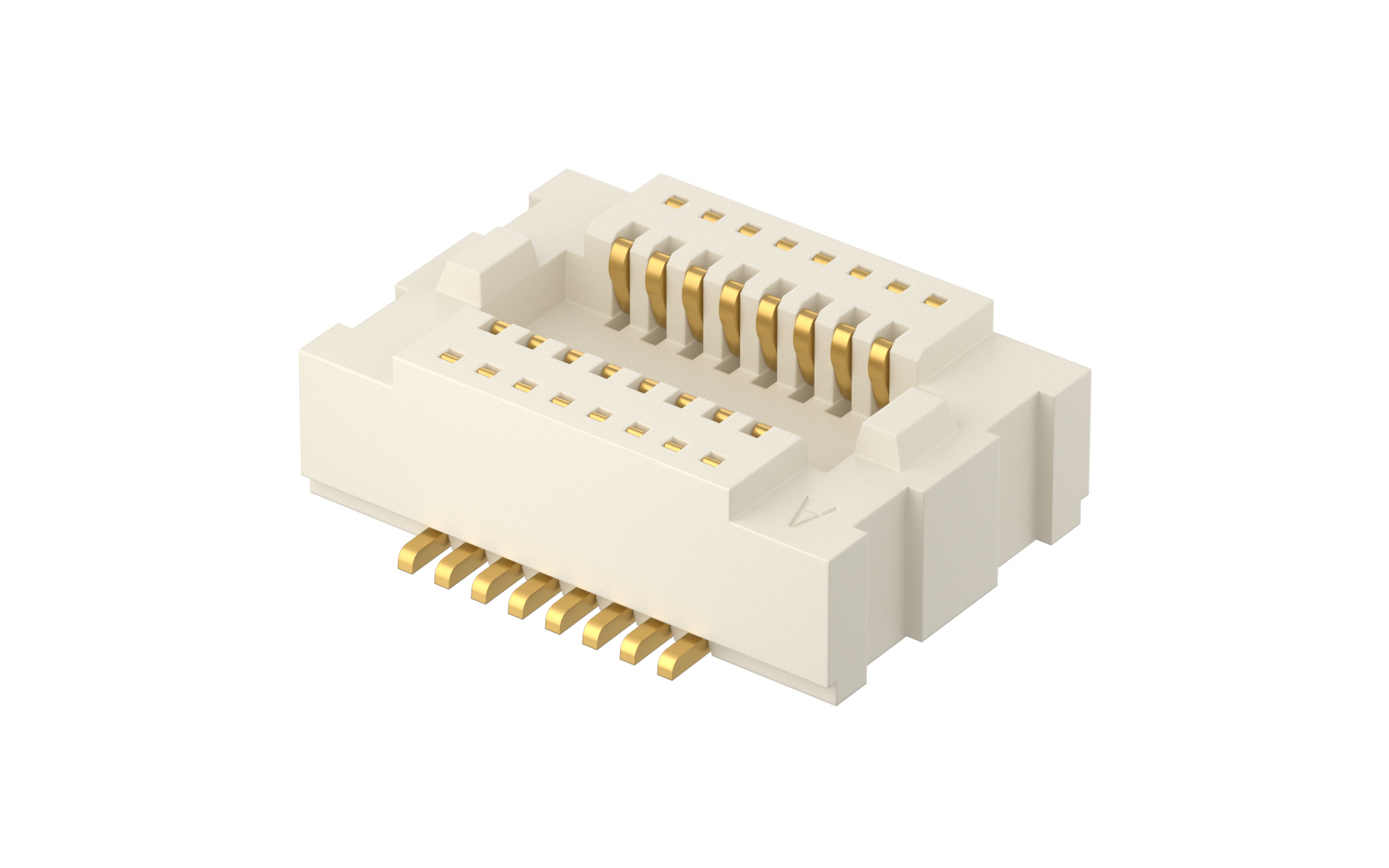

板对板连接器 0.5mm 立贴 50位 母座(组合高度2.5mm)
FBB05001-F50S1003W5M
Board to Board 180°Vertical 0.5mm 50Circuits (Mated height 2.5mm)
FBB05001-F50S1003W5M Copy
Share this product
Stock(pcs)
11
Lead time

≦ 11 In stock

＞ 11 Estimated delivery date 2026-01-01

MPQ
1000
MOQ
2000
Quantity Unit Price
1 $0.864130
10 $0.816176
50 $0.720267
100 $0.672313
500 $0.576404
1000 $0.460488
2500 $0.454136
5000 $0.447785
10000 $0.441433
25000 $0.435082

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
50Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05001-F-1.pdf

3D Drawings

FBB05001-F50S1003W5M_REF
Plug
Board to Board 180°Vertical 0.5mm 50Circuits (Mated height 2.5mm)

FBB05001-M50S1013W5M

Board to Board 180°Vertical 0.5mm 50Circuits (Mated height 2.5mm)
