FBB05001-M10S1013W5M
Iteration new product:FBB05001-M10S1013W5MH12
(同FBB05001-M10S1013W5MH12)板对板连接器 0.5mm 立贴 10位 公座(组合高度2.5mm)
Board to Board 180°Vertical 0.5mm 10Circuits (Mated height 2.5mm)
Product Number：FBB05001-M10S1013W5M
Production Status： Discontinued
Board to Board 180°Vertical 0.5mm 10Circuits (Mated height 2.5mm)

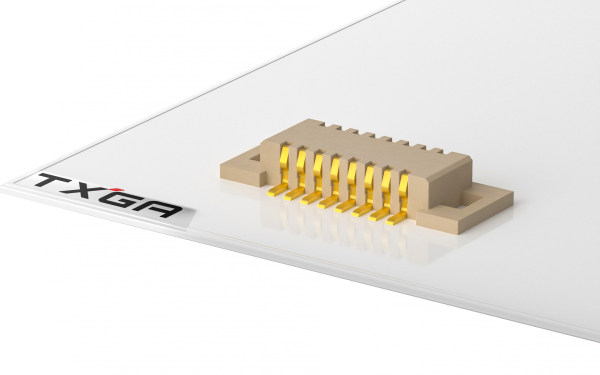

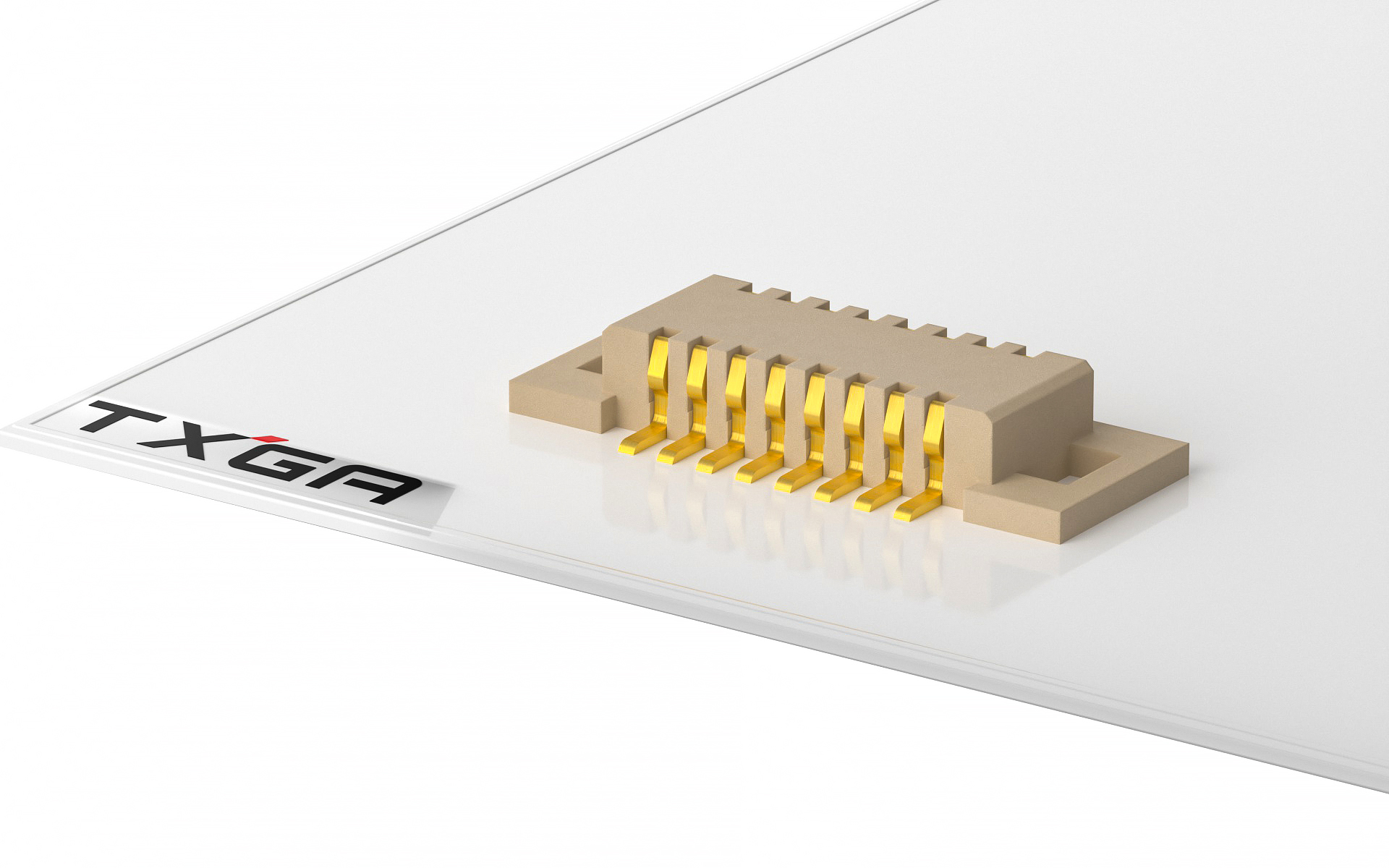

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
10Circuits
Peg
Without peg
Orientation
Vertical(180°)
Colour
Natural
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FBB05001-M.pdf

3D Drawings

FBB05001-M10S1XX3W5M_ref.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
