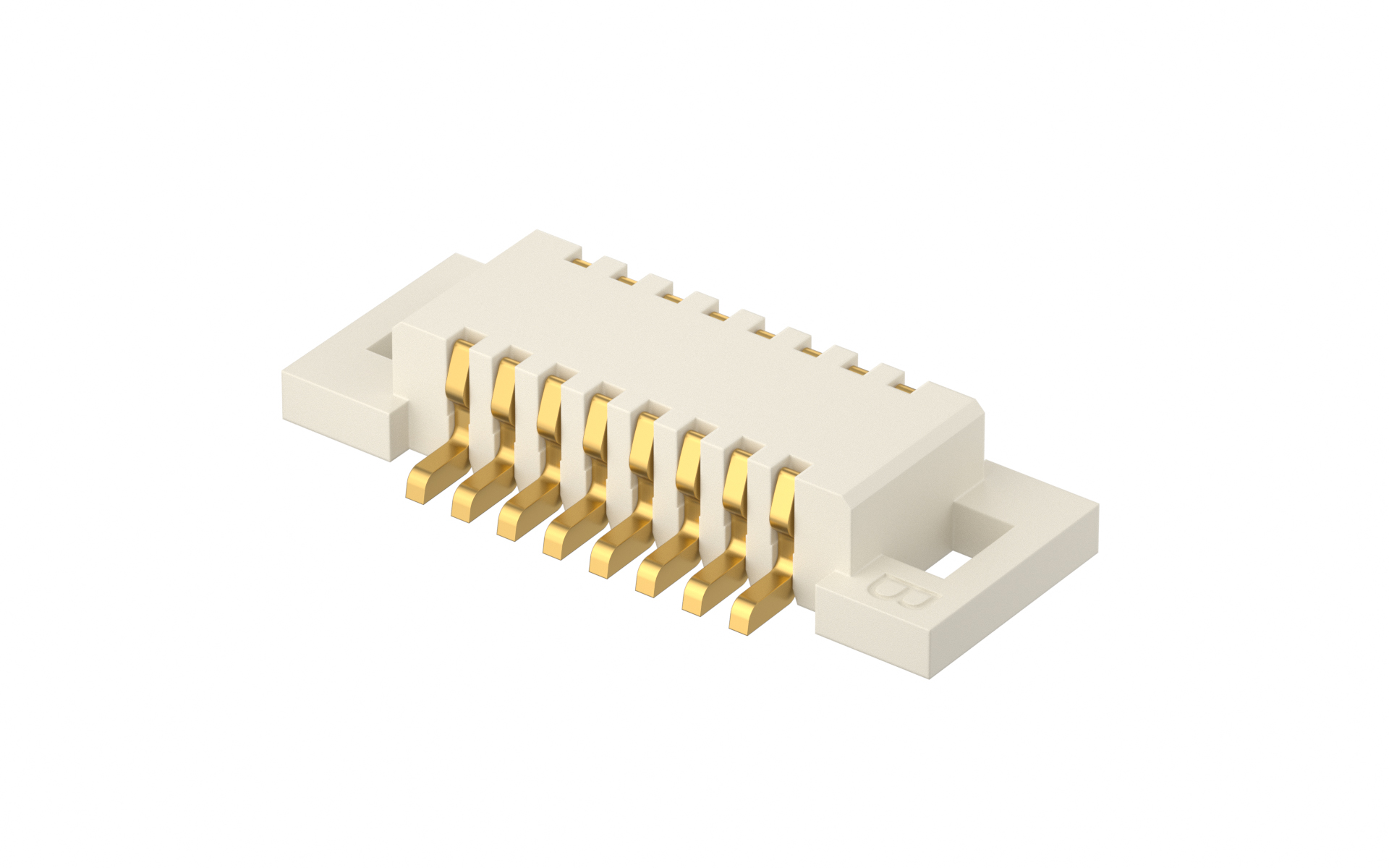

FBB05001-M12S1013W5MH12 Board to Board Connector, 0.5mm, Male, 12Circuits, Vertical(180°), SMT, Without peg, H1.28,

FBB05001-M12S1013W5MH12

板对板连接器,0.5mm,公,12位,垂直(180度),表面贴装,无柱,H1.28,

Board to Board Connector, 0.5mm, Male, 12Circuits, Vertical(180°), SMT, Without peg, H1.28,

Product Number：FBB05001-M12S1013W5MH12

Production Status： Active

Board to Board Connector, 0.5mm, Male, 12Circuits, Vertical(180°), SMT, Without peg, H1.28,

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{3.983388\|tradeCurrencySymbol({digits:6})}}
50+	{{1.758432\|tradeCurrencySymbol({digits:6})}}
100+	{{1.614887\|tradeCurrencySymbol({digits:6})}}
500+	{{1.356505\|tradeCurrencySymbol({digits:6})}}
4000+	{{0.997641\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 28

Lead time Ship Immediately

MOQ 4000

MPQ 56000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Plug

Gender

Male

Pitch

0.5mm

Row Option

Dual row

Number of Positions

12Circuits

Height(mm)

H1.28

Peg

Without peg

Orientation

Vertical(180°)

Colour

Natural

Current(Max)

0.5A

Voltage(Max)

50V

Contact Resistance

40 mΩ Max

Insulation Resistance

500 MΩ Min

Withstanding Voltage

200V AC r.m.s

Operating Temperature Range

-25ºC~+85ºC

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material-Contact

Phosphor bronze

Plating

Gold plated

Plating Thickness

0.025μm

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FBB05001-M.pdf

3D Drawings

FBB05001-M12S1XX3W5MH12.stp

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
