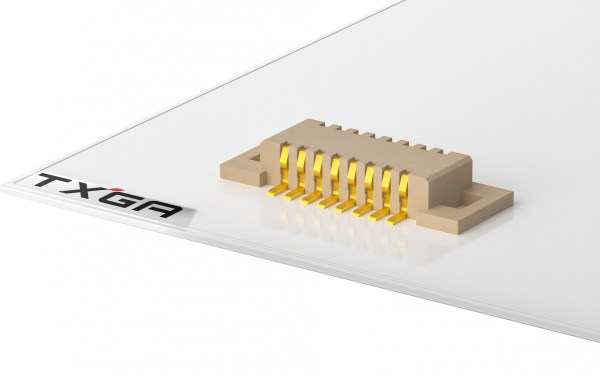

板对板连接器 0.5mm 立贴 16位 公座(组合高度2.5mm)
FBB05001-M16S1013W5M
Board to Board 180°Vertical 0.5mm 16Circuits (Mated height 2.5mm)
FBB05001-M16S1013W5M Copy
Share this product
Stock(pcs)
13
Lead time

≦ 13 In stock

＞ 13 Estimated delivery date 2025-10-16

MPQ
1000
MOQ
2000
Quantity Unit Price
1 $0.334287
10 $0.315276
50 $0.277254
100 $0.258243
500 $0.220221
1000 $0.171808
2500 $0.169446
5000 $0.167085
10000 $0.164723
25000 $0.162361

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
16Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05001-M-1.pdf
Receptacle
Board to Board 180°Vertical 0.5mm 16Circuits (Mated height 2.5mm)

FBB05001-F16S1003W5M

Board to Board 180°Vertical 0.5mm 16Circuits (Mated height 2.5mm)
