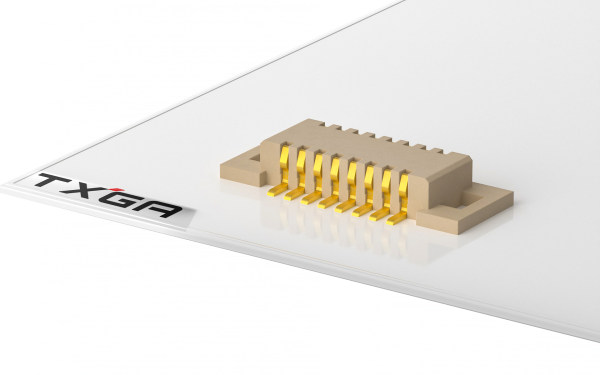

板到板连接器 0.5mm 立贴 22位 公座(组合高度2.5mm)
FBB05001-M22S1013W5M
Board to Board 180°Vertical 0.5mm 22Circuits
FBB05001-M22S1013W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-05-21
MPQ
1000
MOQ
2000
Quantity Unit Price
1 $0.520578
10 $0.490972
50 $0.431761
100 $0.402156
500 $0.342945
1000 $0.267552
2500 $0.263875
5000 $0.260197
10000 $0.256519
25000 $0.252842
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
22Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05001-M-1.pdf
Receptacle
Board to Board 180°Vertical 0.5mm 22Circuits

FBB05001-F22S1003W5M

Board to Board 180°Vertical 0.5mm 22Circuits
