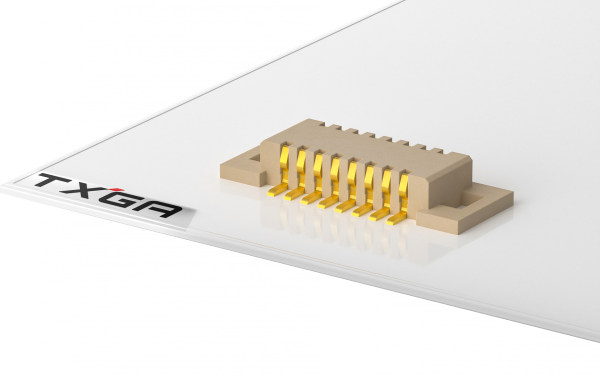

板对板连接器 0.5mm 立贴 24位 公座(组合高度2.5mm)
FBB05001-M24S1003W5M
Board to Board 180°Vertical 0.5mm 24Circuits (Mated height 2.5mm)
FBB05001-M24S1003W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2026-01-01
MPQ
1000
MOQ
2000
Quantity Unit Price
1 $0.566653
10 $0.534498
50 $0.470188
100 $0.438033
500 $0.373723
1000 $0.295997
2500 $0.291738
5000 $0.287479
10000 $0.283220
25000 $0.278961

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05001-M-1.pdf
Receptacle
Board to Board 180°Vertical 0.5mm 24Circuits (Mated height 2.5mm)

FBB05001-F24S1003W5M

Board to Board 180°Vertical 0.5mm 24Circuits (Mated height 2.5mm)

 Board to Board Connector, 0.5mm, Female, 24Circuits, Vertical(180°), SMT, 0.025μm, LCP,

FBB05001-F24S1013W5M

Board to Board Connector, 0.5mm, Female, 24Circuits, Vertical(180°), SMT, 0.025μm, LCP,
