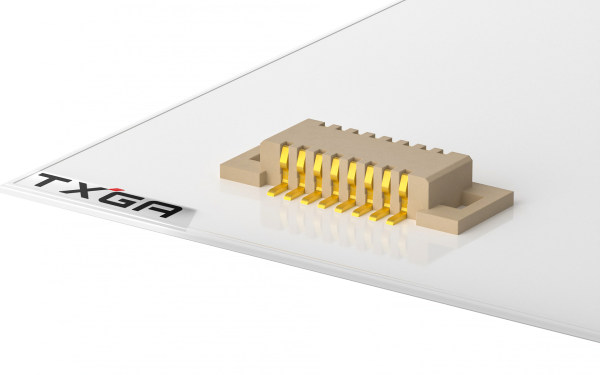

板到板连接器 0.5mm 立贴 24位 公座(组合高度2.5mm)
FBB05001-M24S1013W5M
Board to Board 180°Vertical 0.5mm 24Circuits
FBB05001-M24S1013W5M Copy
Share this product
Stock(pcs)
42
Lead time

≦ 42 In stock

＞ 42 Estimated delivery date 2025-05-21

MPQ
1000
MOQ
2000
Quantity Unit Price
1 $0.416722
10 $0.393022
50 $0.345624
100 $0.321925
500 $0.274527
1000 $0.214175
2500 $0.211231
5000 $0.208287
10000 $0.205343
25000 $0.202399
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
24Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
0.025μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05001-M-1.pdf
Receptacle
Board to Board 180°Vertical 0.5mm 24Circuits

FBB05001-F24S1003W5M

Board to Board 180°Vertical 0.5mm 24Circuits

 Board to Board Connector, 0.5mm, Female, 24Circuits, Vertical(180°), SMT, 0.025μm, LCP,

FBB05001-F24S1013W5M

Board to Board Connector, 0.5mm, Female, 24Circuits, Vertical(180°), SMT, 0.025μm, LCP,
