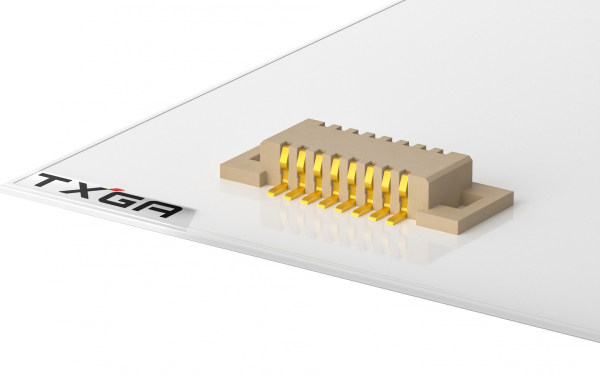

板对板连接器 0.5mm 立贴 30位 公座(组合高度2.5mm)
FBB05001-M30S1003W5M
Board to Board 180°Vertical 0.5mm 30Circuits (Mated height 2.5mm)
FBB05001-M30S1003W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2026-01-01
MPQ
1000
MOQ
2000
Quantity Unit Price
1 $0.555124
10 $0.523554
50 $0.460414
100 $0.428843
500 $0.365703
1000 $0.285307
2500 $0.281386
5000 $0.277464
10000 $0.273542
25000 $0.269620

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
30Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05001-M-1.pdf
Receptacle
Board to Board 180°Vertical 0.5mm 30Circuits (Mated height 2.5mm)

FBB05001-F30S1013W5M

Board to Board 180°Vertical 0.5mm 30Circuits (Mated height 2.5mm)
