板对板连接器 0.5mm 立贴 40位 公座(组合高度2.5mm)(无卤)

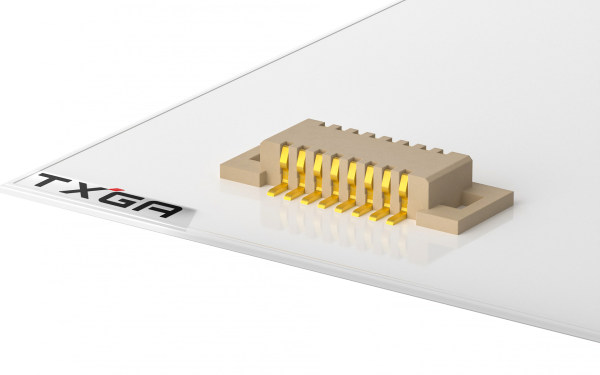

FBB05001-M40S1003W5M
Board to Board 180°Vertical 0.5mm 40Circuits(HF) (Mated height 2.5mm)
FBB05001-M40S1003W5M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2026-01-01
MPQ
1000
MOQ
2000
Quantity Unit Price
1 $0.825342
10 $0.779541
50 $0.687937
100 $0.642135
500 $0.550531
1000 $0.439819
2500 $0.433752
5000 $0.427686
10000 $0.421619
25000 $0.415553

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
40Circuits
Orientation
Vertical(180°)
Colour
Natural
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05001-M-1.pdf
Receptacle
Board to Board 180°Vertical 0.5mm 40Circuits(HF) (Mated height 2.5mm)

FBB05001-F40S1003W5M

Board to Board 180°Vertical 0.5mm 40Circuits(HF) (Mated height 2.5mm)

 Board to Board 180°Vertical 0.5mm 40Circuits (Mated height 2.5mm)

FBB05001-F40S1013W5M

Board to Board 180°Vertical 0.5mm 40Circuits (Mated height 2.5mm)
