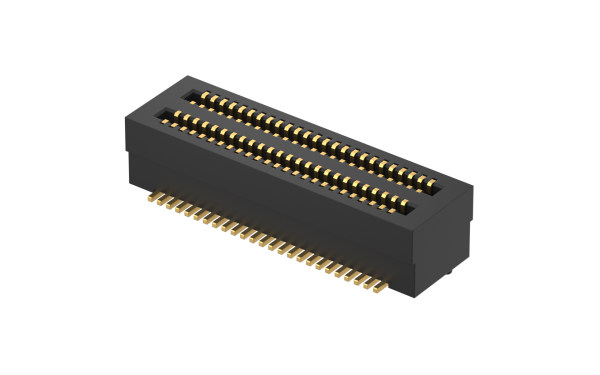

板对板连接器 0.5mm 立贴 12位 母座(有柱)(H1=4mm)
FBB05002-F12S1003K6MH40
Board to Board 0.5mm 180°Vertical(SMT) Female 12Circuits(H1=4mm)
FBB05002-F12S1003K6MH40 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-07-03
MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.288221
10 $0.271830
50 $0.239047
100 $0.222656
500 $0.189874
1000 $0.148132
2500 $0.146096
5000 $0.144060
10000 $0.142023
25000 $0.139987
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
12Circuits
Peg
With peg
Height(mm)
H4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05002-F-4.pdf

Product Specifications

Specification
Plug
Board to Board 0.5mm 180°Vertical(SMT) Male 12Circuits(H2=1mm)

FBB05002-M12S1003K6MH10

Board to Board 0.5mm 180°Vertical(SMT) Male 12Circuits(H2=1mm)

 Board to Board 0.5mm 180°Vertical(SMT) Male 12Circuits(H2=2mm)

FBB05002-M12S1003K6MH20

Board to Board 0.5mm 180°Vertical(SMT) Male 12Circuits(H2=2mm)
