板对板连接器,0.5mm,母,40位,垂直(180度),表面贴装,H4.5
FBB05002-F40S1033K6MH45

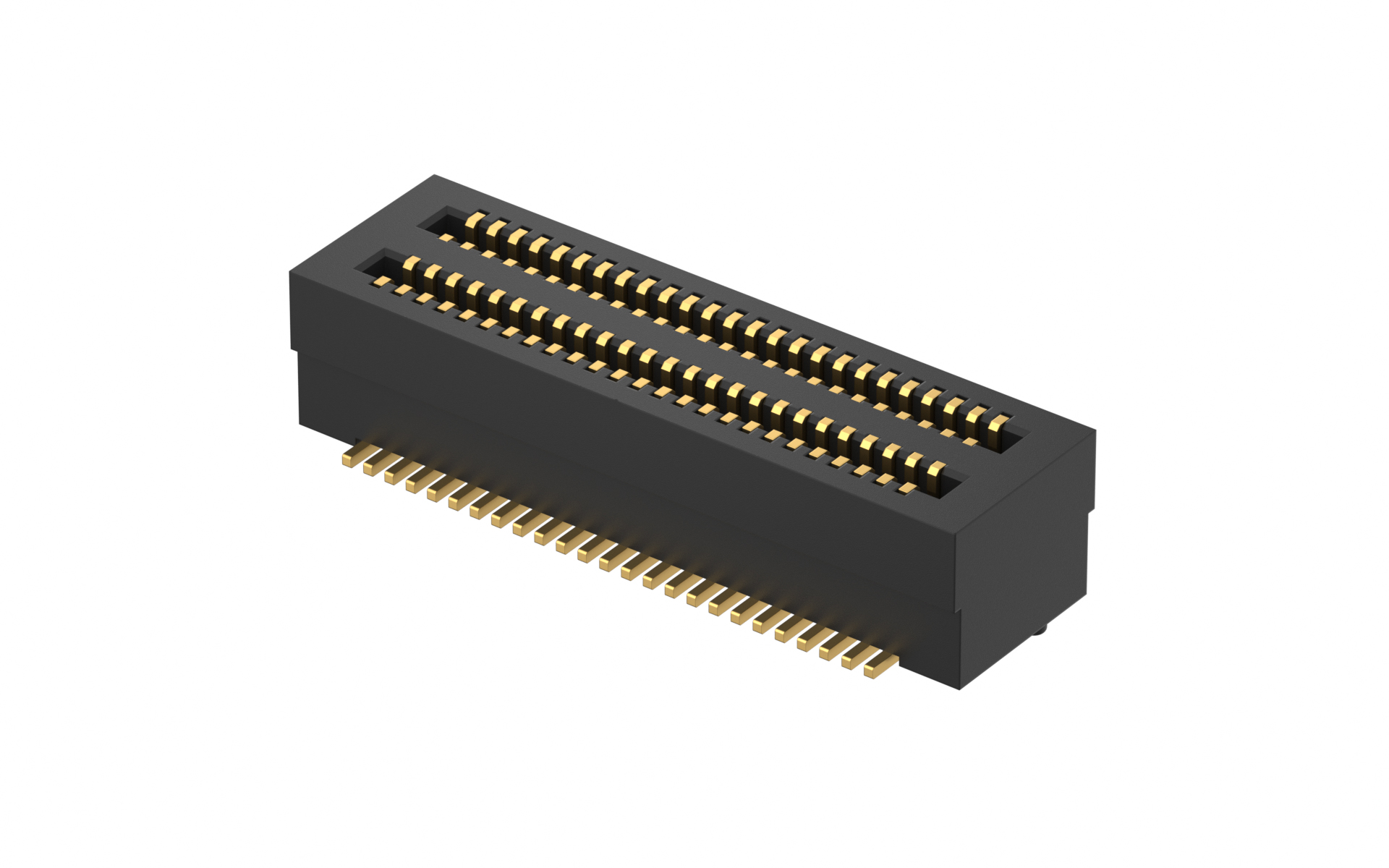

Board to Board Connector, 0.5mm, Female, 40Circuits, Vertical(180°), SMT, H4.5
FBB05002-F40S1033K6MH45 Copy
Share this product
Stock(pcs)
50
Lead time

≦ 50 In stock

＞ 50 Estimated delivery date 2025-10-21

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.803058
10 $0.769213
50 $0.655369
100 $0.599986
500 $0.532295
1000 $0.424605
5000 $0.418452
10000 $0.412298

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.5mm
Row Option
Dual row
Number of Positions
40Circuits
Peg
With peg
Height(mm)
H4.5
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05002-F

3D Drawings

FBB05002-F40S1033K6MH45

Product Specifications

Specification
Plug
Board to Board 0.5mm 180°Vertical(SMT) Male 40Circuits(H2=1mm)

FBB05002-M40S1003K6MH10

Board to Board 0.5mm 180°Vertical(SMT) Male 40Circuits(H2=1mm)

 Board to Board 0.5mm 180°Vertical(SMT) Male 40Circuits(H2=2mm)

FBB05002-M40S1003K6MH20

Board to Board 0.5mm 180°Vertical(SMT) Male 40Circuits(H2=2mm)

 Board to Board 0.5mm 180°Vertical(SMT) Male 40Circuits(H2=2mm)

FBB05002-M40S1033K6MH20

Board to Board 0.5mm 180°Vertical(SMT) Male 40Circuits(H2=2mm)
