板对板连接器 0.5mm 立贴 100位 公座(有柱)(H2=0.8mm)
FBB05002-M100S1033K6MH08

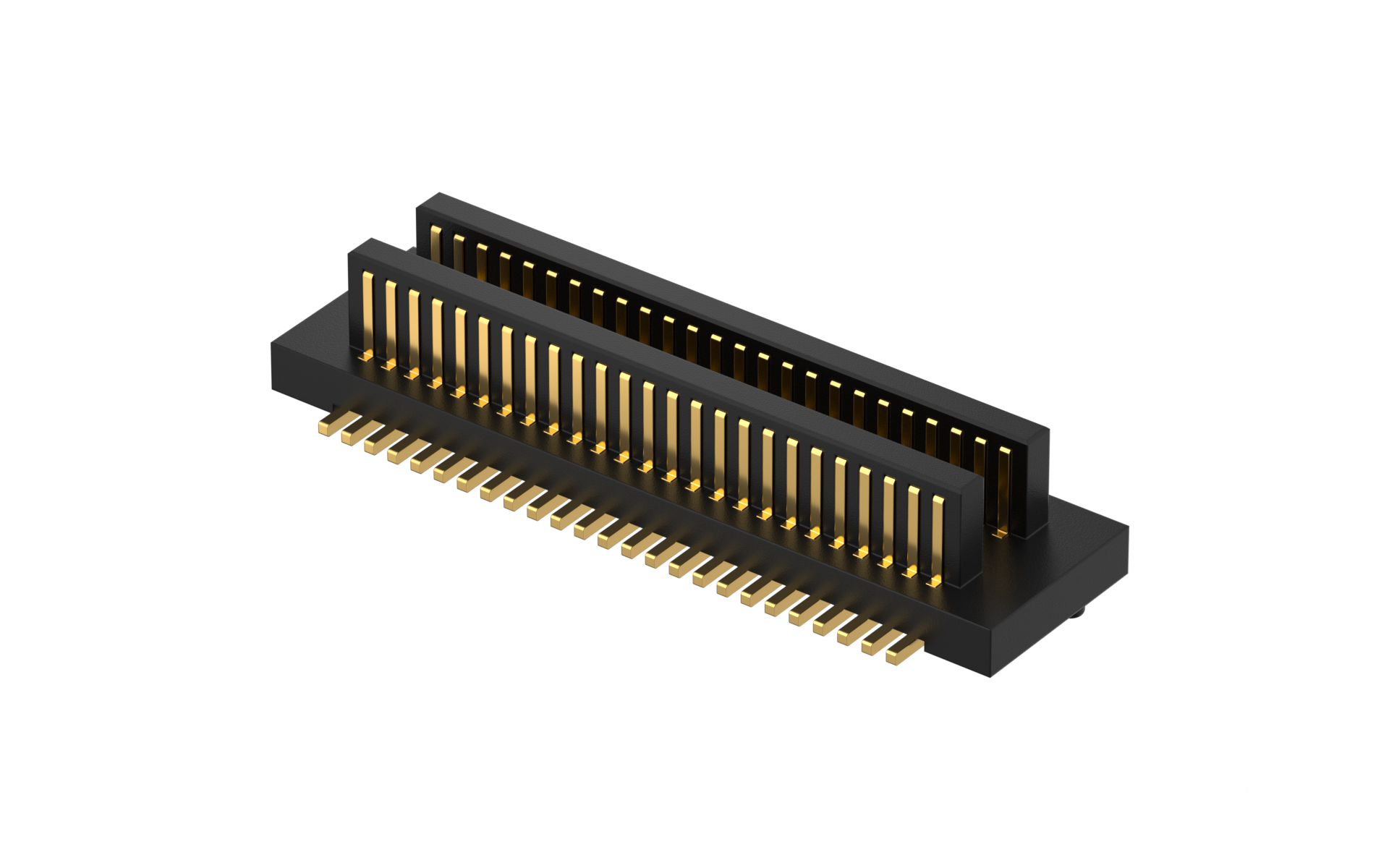

Board to Board 0.5mm 180°Vertical(SMT) Male 100Circuits(H2=0.8mm)
FBB05002-M100S1033K6MH08 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-16
MPQ
1000
MOQ
3000
Quantity Unit Price
1 $1.991109
10 $1.906545
50 $1.606725
100 $1.476035
500 $1.306906
1000 $1.053212
5000 $1.037837
10000 $1.022461

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
100Circuits
Peg
With peg
Height(mm)
H0.8
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05002-M

3D Drawings

FBB05002-M100S1033K6MH08_REF

Product Specifications

Specification
Receptacle
Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=2.2mm)

FBB05002-F100S1003K6MH22

Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=2.2mm)

 Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=2.2mm)

FBB05002-F100S1033K6MH22

Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=2.2mm)
