板对板连接器,0.5mm,公,100位,垂直(180度),表面贴装,有柱,H2,0.075μm
FBB05002-M100S1033K6MH20

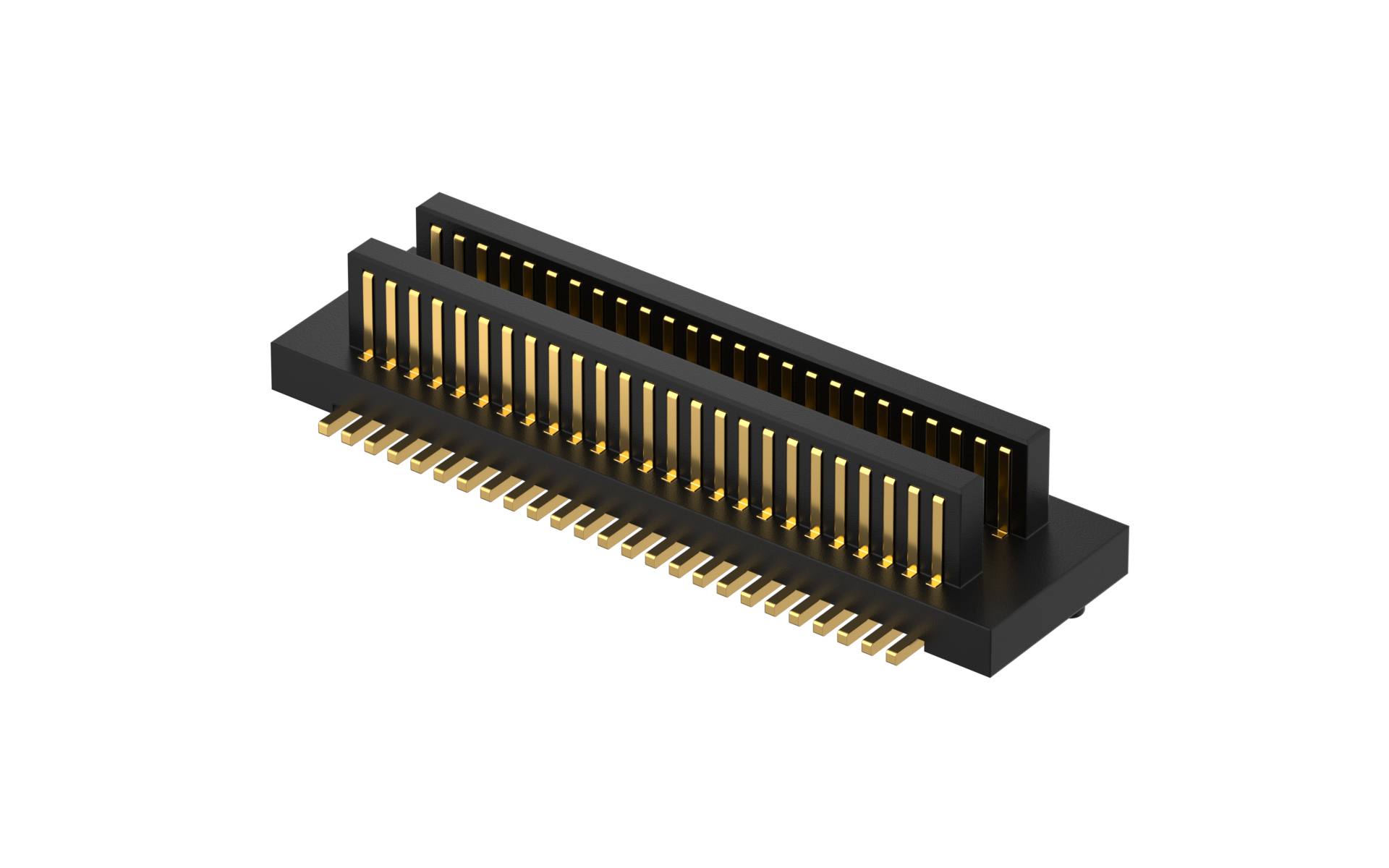

Board to Board Connector, 0.5mm, Male, 100Circuits, Vertical(180°), SMT, With peg, H2, 0.075μm
FBB05002-M100S1033K6MH20 Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-16
MPQ
1000
MOQ
2000
Quantity Unit Price
1 $1.896202
10 $1.815668
50 $1.530140
100 $1.405679
500 $1.244611
1000 $1.003010
5000 $0.988368
10000 $0.973725

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
100Circuits
Peg
With peg
Height(mm)
H2
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
0.075μm
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05002-M

3D Drawings

FBB05002-M100S1XX3XXMH20_ref

Product Specifications

Specification
Receptacle
Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=3mm)

FBB05002-F100S1003K6MH30

Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=3mm)

 Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=4mm)

FBB05002-F100S1003K6MH40

Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=4mm)

 Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=4.5mm)

FBB05002-F100S1003K6MH45

Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=4.5mm)

 Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=4mm)

FBB05002-F100S1033K6MH40

Board to Board 0.5mm 180°Vertical(SMT) Female 100Circuits(H1=4mm)
