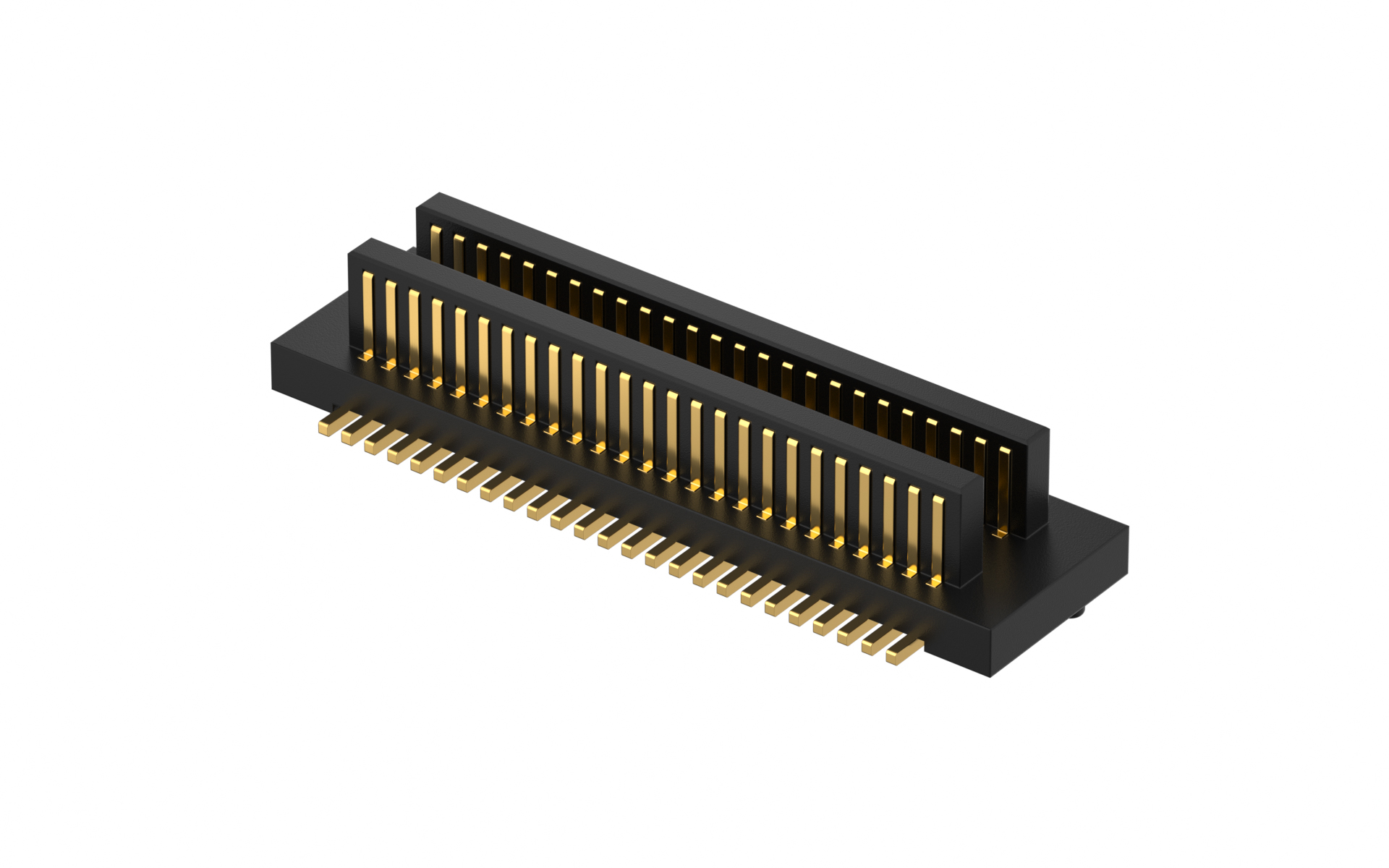

板对板连接器 0.5mm 立贴 20位 公座(有柱)(H2=0.8mm)
FBB05002-M20S1003K6MH08
Board to Board 0.5mm 180°Vertical(SMT) Male 20Circuits(H2=0.8mm)
FBB05002-M20S1003K6MH08 Copy
Share this product
Stock(pcs)
59
Lead time

≦ 59 In stock

＞ 59 Estimated delivery date 2025-10-16

MPQ
1000
MOQ
1000
Quantity Unit Price
1 $0.429233
10 $0.349990
50 $0.291878
100 $0.266785
500 $0.235087
1000 $0.182919
5000 $0.180278
10000 $0.177636

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
20Circuits
Peg
With peg
Height(mm)
H0.8
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
40 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Copper alloy
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
PA9T
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05002-M

Product Specifications

Specification
Receptacle
Board to Board 0.5mm 180°Vertical(SMT) Female 20Circuits(H1=2.2mm)

FBB05002-F20S1003K6MH22

Board to Board 0.5mm 180°Vertical(SMT) Female 20Circuits(H1=2.2mm)
