板对板连接器 0.5mm ,公座 ,60位 ,立贴 (高速传输15G)(组合高度5mm)
FBB05007-M60S3103K6M

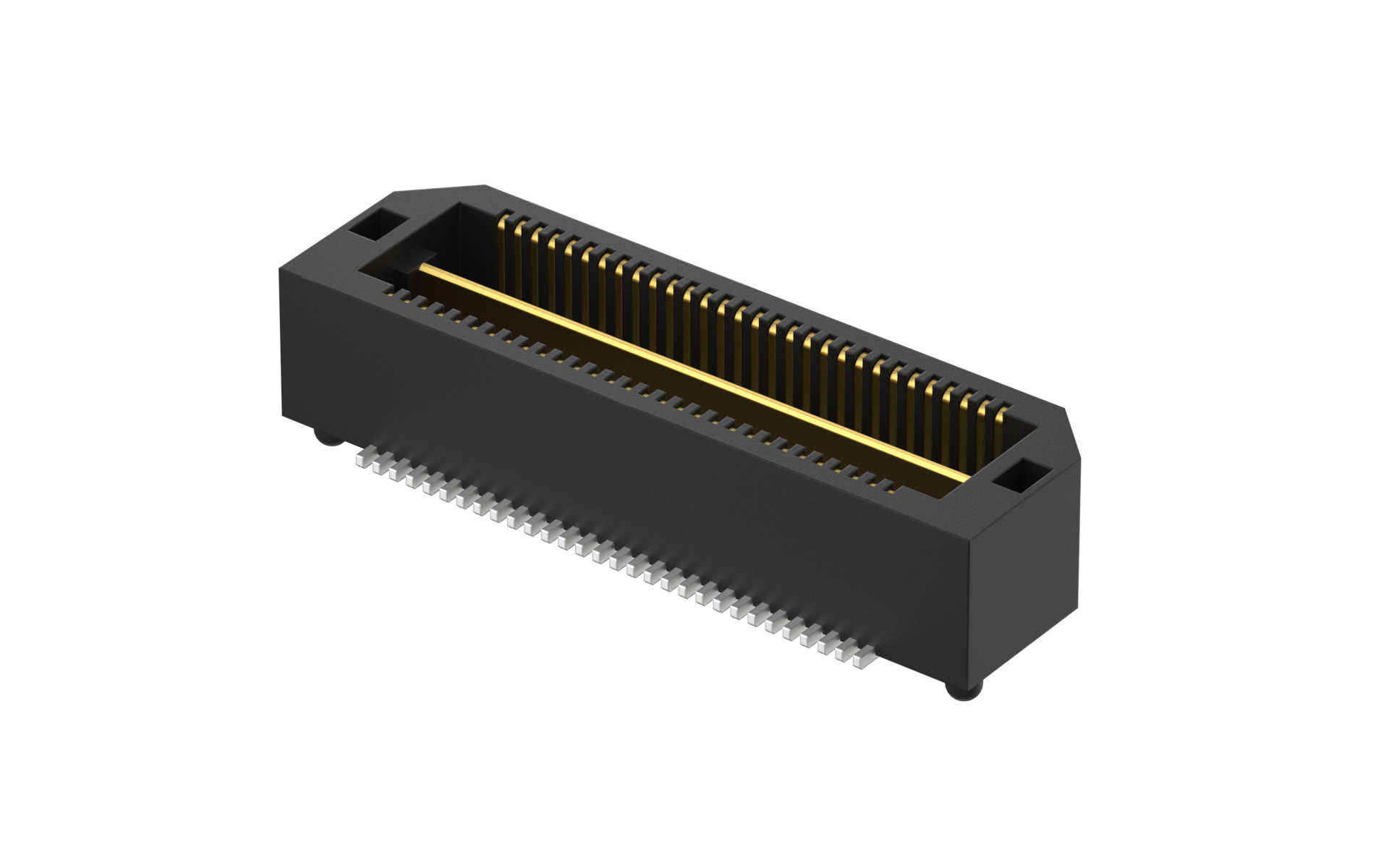

Board to Board 0.5mm, Male, 60Circuits, 180° Vertical(SMT) (15G) (Mated height 5mm)
FBB05007-M60S3103K6M Copy
Share this product
Stock(pcs)
0
Lead time
Estimated delivery date 2025-10-21
MPQ
600
MOQ
600
Quantity Unit Price
1 $4.186297
10 $4.018845
50 $3.416019
100 $3.131350
500 $2.762956
1000 $2.235483
5000 $2.201992
10000 $2.168502

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.5mm
Row Option
Dual row
Number of Positions
60Circuits
Peg
With peg
Height(mm)
H4.26
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Data Rate
15Gbps
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
50
Material
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.25μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB05007-M-1.pdf

3D Drawings

FBB05007-M60S3103K6M_ref
Receptacle
Board to Board 0.5mm, Female, 60Circuits, 180° Vertical(SMT) (15G) (Mated height 5mm)

FBB05007-F60S3103K6M

Board to Board 0.5mm, Female, 60Circuits, 180° Vertical(SMT) (15G) (Mated height 5mm)
