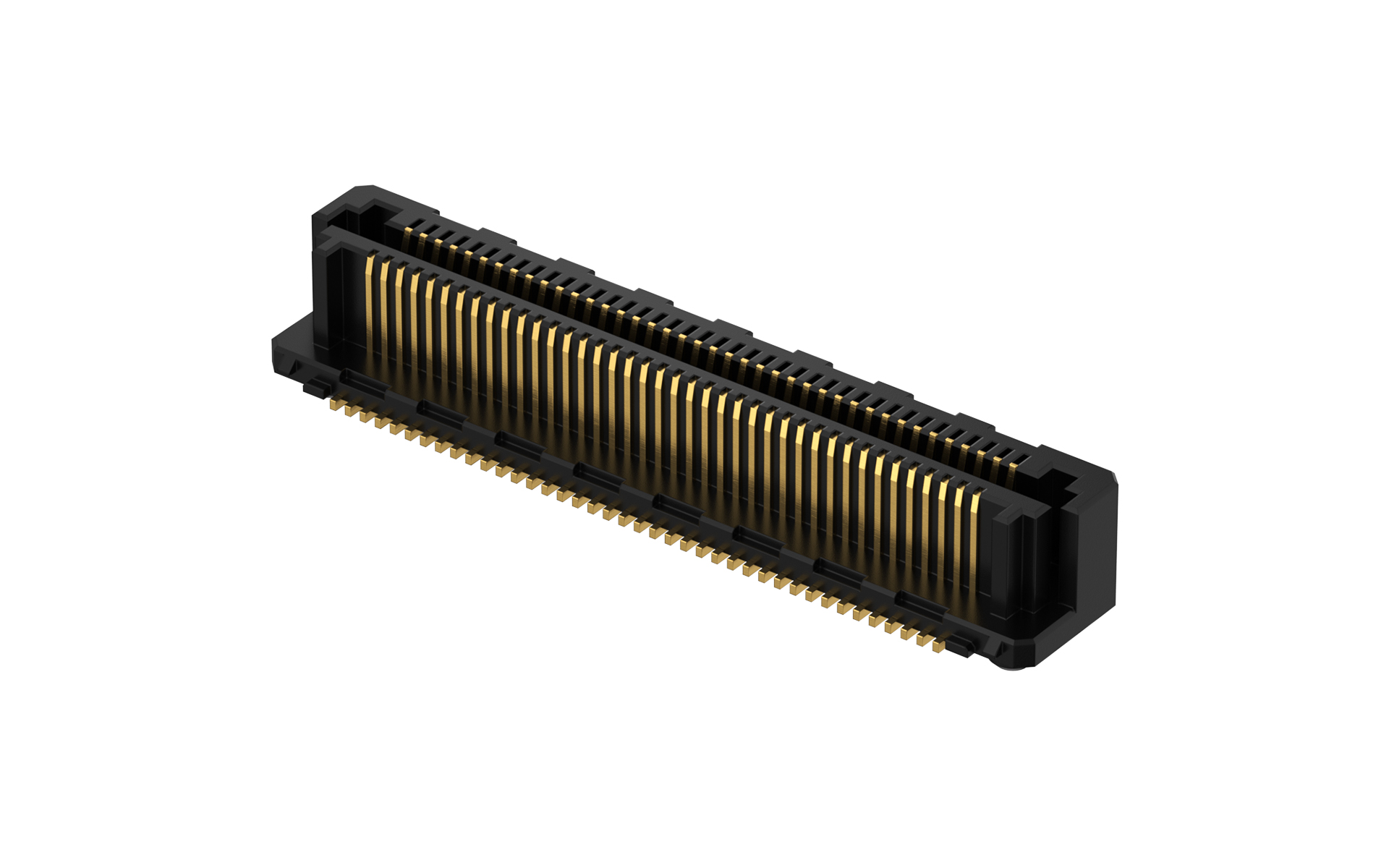

FBB05011-C050S1003BKMH40 Board to Board Connector, 0.5mm, Hermaphroditic, 50Circuits, Vertical(180°), SMT, With peg, H3.95,

FBB05011-C050S1003BKMH40

板对板连接器,0.5mm,公母同体,50位,垂直(180度),表面贴装,有柱,H3.95,

Board to Board Connector, 0.5mm, Hermaphroditic, 50Circuits, Vertical(180°), SMT, With peg, H3.95,

Product Number：FBB05011-C050S1003BKMH40

Production Status： Active

Board to Board Connector, 0.5mm, Hermaphroditic, 50Circuits, Vertical(180°), SMT, With peg, H3.95,

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{4.390901\|tradeCurrencySymbol({digits:6})}}
10+	{{4.215265\|tradeCurrencySymbol({digits:6})}}
50+	{{3.582975\|tradeCurrencySymbol({digits:6})}}
100+	{{3.284394\|tradeCurrencySymbol({digits:6})}}
500+	{{2.897995\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 32

Lead time Ship Immediately

MOQ 1000

MPQ 7000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Socket

Gender

Mixed

Pitch

0.5mm

Row Option

Dual row

Number of Positions

50Circuits

Height(mm)

H3.95

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Current(Max)

Voltage(Max)

160V

Contact Resistance

30 mΩ Max

Insulation Resistance

1000 MΩ Min

Withstanding Voltage

470V AC r.m.s

Operating Temperature Range

-55ºC~+125ºC

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material-Contact

Copper alloy

Plating

Gold plated

Plating Thickness

Gold flash

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FBB05011 Series.pdf

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
