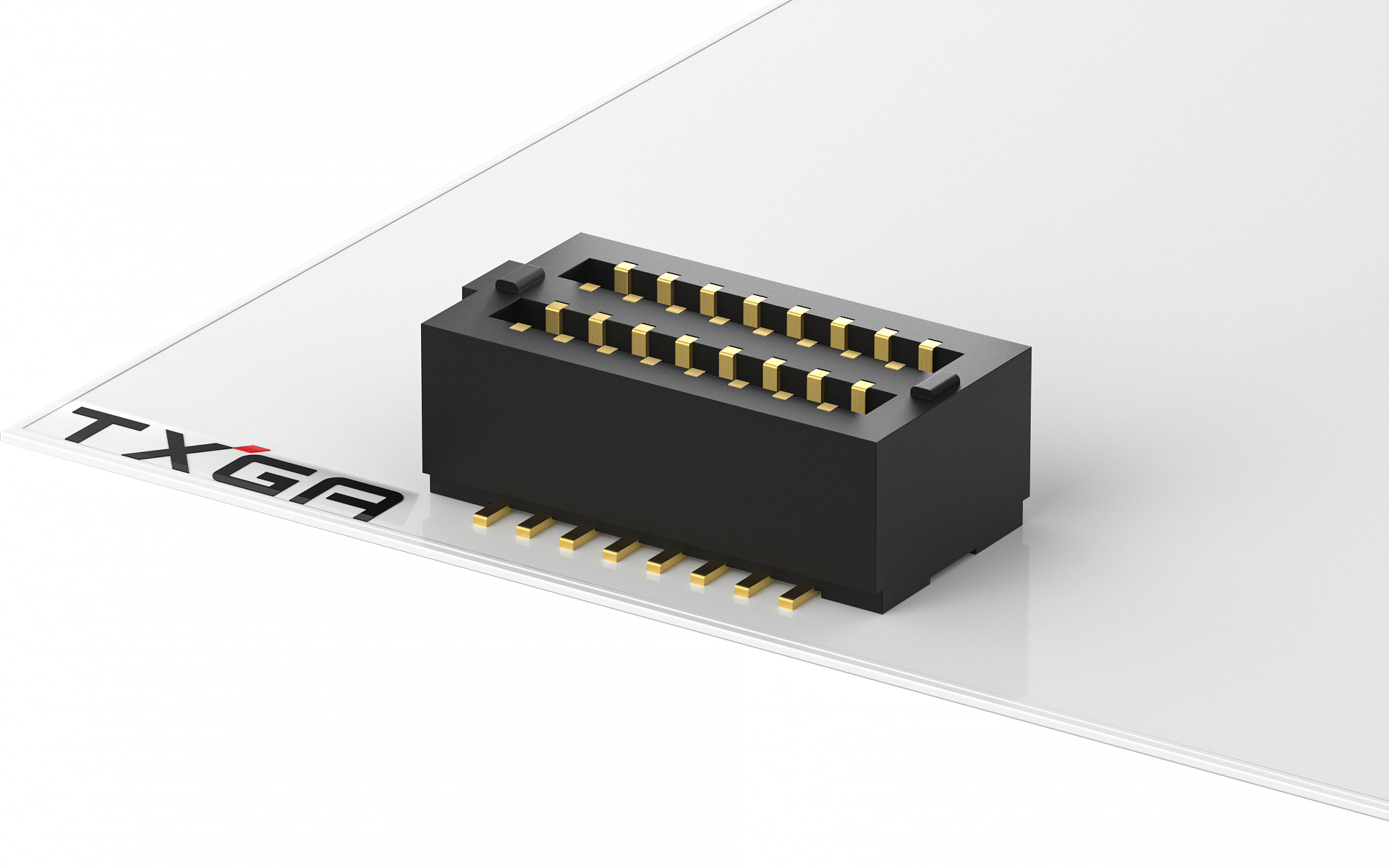

板对板连接器 0.8mm 立贴 70位 (母座)(H1=4mm)
FBB08001-F70S1003K6MH40
Board to Board 180°Vertical 0.8mm 70Circuits(H1=4mm)
FBB08001-F70S1003K6MH40 Copy
Share this product
Stock(pcs)
30
Lead time

≦ 30 In stock

＞ 30 Estimated delivery date 2025-06-04

MPQ
1500
MOQ
1500
Quantity Unit Price
1 $1.653268
10 $1.583052
50 $1.334104
100 $1.225588
500 $1.085156
1500 $0.874508
5000 $0.861742
10000 $0.848975
Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Socket
Gender
Female
Pitch
0.8mm
Row Option
Dual row
Number of Positions
70Circuits
Peg
With peg
Height(mm)
H4
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB08001-F Series
Plug
Board to Board 180°Vertical 0.8mm 70Circuits(H2=1mm)

FBB08001-M70S1003K6MH10

Board to Board 180°Vertical 0.8mm 70Circuits(H2=1mm)

 Board to Board 180°Vertical 0.8mm 70Circuits(H2=2mm)

FBB08001-M70S1003K6MH20

Board to Board 180°Vertical 0.8mm 70Circuits(H2=2mm)
