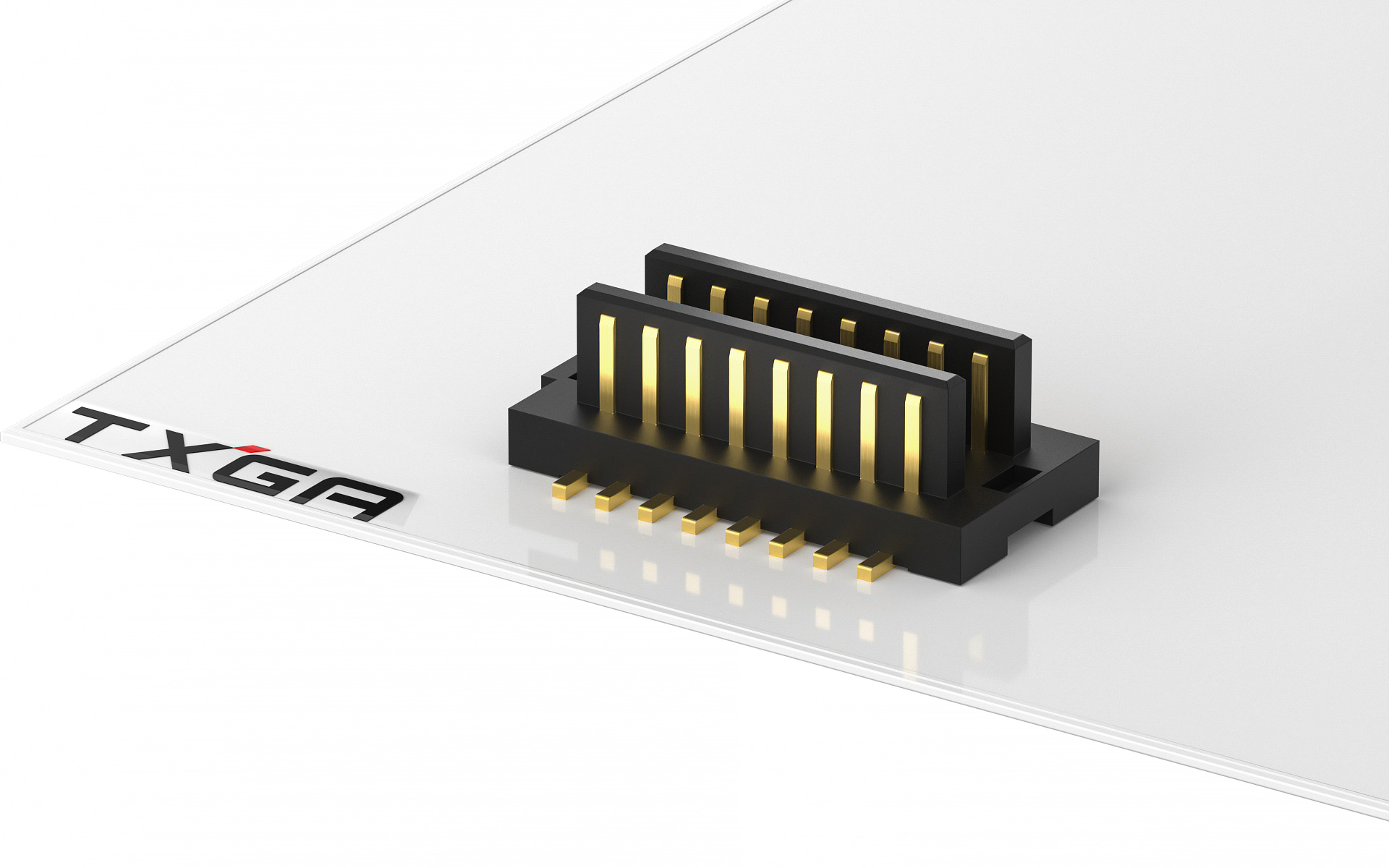

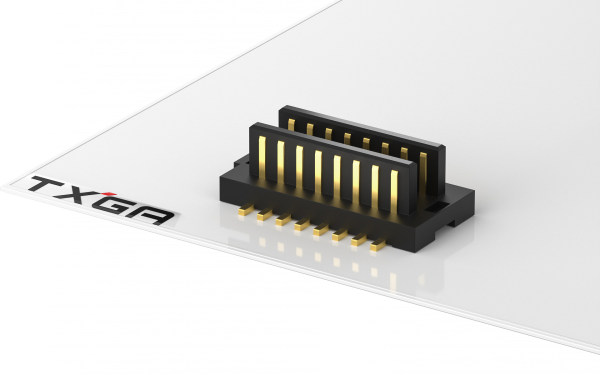

板对板连接器 0.8mm 立贴 14位 (公座)(H2=2mm)
FBB08001-M14S1003K6MH20
Board to Board 180°Vertical 0.8mm 14Circuits(H2=2mm)
FBB08001-M14S1003K6MH20 Copy
Share this product
Stock(pcs)
535
Lead time

≦ 535 In stock

＞ 535 Estimated delivery date 2025-10-15

MPQ
1500
MOQ
1500
Quantity Unit Price
1 $0.442076
10 $0.360462
50 $0.300611
100 $0.274767
500 $0.242121
1500 $0.188392
5000 $0.185672
10000 $0.182951

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Category
Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.8mm
Row Option
Dual row
Number of Positions
14Circuits
Peg
With peg
Height(mm)
H2
Orientation
Vertical(180°)
Colour
Black
Electrical
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mechanical
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Packaging
Reel

Product Drawings

FBB08001-M Series
