FBB08001-M36S1003K6MH20

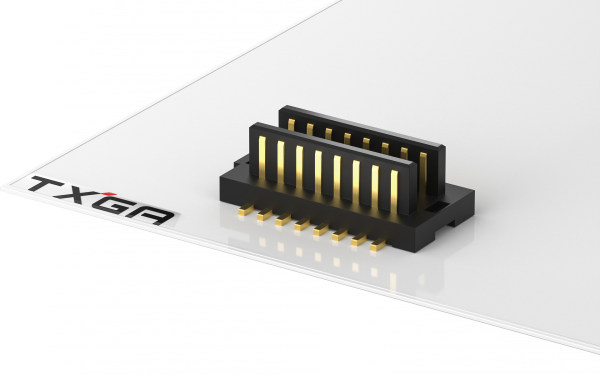

板对板连接器 0.8mm 立贴 36位 (公座)(H2=2mm)
Board to Board 180°Vertical 0.8mm 36Circuits(H2=2mm)
Product Number：FBB08001-M36S1003K6MH20
Production Status： Active
Board to Board 180°Vertical 0.8mm 36Circuits(H2=2mm)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ ¥6.479885
10+ ¥6.206786
50+ ¥5.288182
100+ ¥4.841293
500+ ¥4.295096
Stock(pcs) 0
Lead time 2026-02-13
MOQ 1500
MPQ 999999

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.8mm
Row Option
Dual row
Number of Positions
36Circuits
Height(mm)
H2
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
500 MΩ Min
Withstanding Voltage
250V AC r.m.s
Operating Temperature Range
-25ºC~+85ºC
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material-Contact
Phosphor bronze
Plating
Gold plated
Plating Thickness
Gold flash
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FBB08001-M Series
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
