FBB08004-F40S3103K6M Board to Board 0.8mm, Female, 40Circuits, 180° Vertical(SMT) (15G) (Mated height 5mm)

FBB08004-F40S3103K6M

板对板连接器 0.8mm ,母座 ,40位 ,立贴 (高速传输15G)(组合高度5mm)

Board to Board 0.8mm, Female, 40Circuits, 180° Vertical(SMT) (15G) (Mated height 5mm)

Product Number：FBB08004-F40S3103K6M

Production Status： Active

Board to Board 0.8mm, Female, 40Circuits, 180° Vertical(SMT) (15G) (Mated height 5mm)

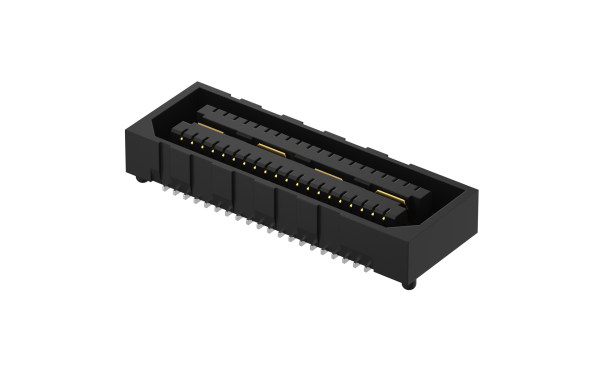

The pictures are for reference only for installation methods, please refer to the specifications and drawings for details

Specification Indication

Quantity	Unit Price (including tax) Unit Price
1+	{{25.562248\|tradeCurrencySymbol({digits:6})}}
10+	{{24.750748\|tradeCurrencySymbol({digits:6})}}
50+	{{20.896123\|tradeCurrencySymbol({digits:6})}}
100+	{{19.171686\|tradeCurrencySymbol({digits:6})}}
500+	{{16.940061\|tradeCurrencySymbol({digits:6})}}

Stock(pcs) 1034

Lead time Ship Immediately

MOQ 1000

MPQ 4000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog

Connectors

Product System

Board to Board Connector

Style

Socket

Gender

Female

Pitch

0.8mm

Row Option

Dual row

Number of Positions

40Circuits

Peg

With peg

Orientation

Vertical(180°)

Colour

Black

Current(Max)

Voltage(Max)

225V

Contact Resistance

15 mΩ Max

Insulation Resistance

5000 MΩ Min

Withstanding Voltage

675V AC r.m.s

Operating Temperature Range

-40ºC~+85ºC

Data Rate

15Gbps

Mounting Style

SMT

Durability (Mating Cycles Max.)

Material-Contact

Phosphor bronze

Plating

Gold on contact, matte tin on tail

Plating Thickness

0.25μm

Material-Resin

LCP

Flammability Rating

UL94 V-0

Packaging

Reel

Product Drawings

FBB08004-F-2.pdf

3D Drawings

FBB08004-F40S3103K6M_REF.stp

Product Specifications

FBB08004-F-3.pdf English Version

REACH (EU REACH Regulation)	Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive)	Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive)	Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
