FBB08005-M40S3103K6MH90
板对板连接器 0.8mm ,公座 ,40位 ,10u",立贴 (高速传输28G)(H2=8.61mm)

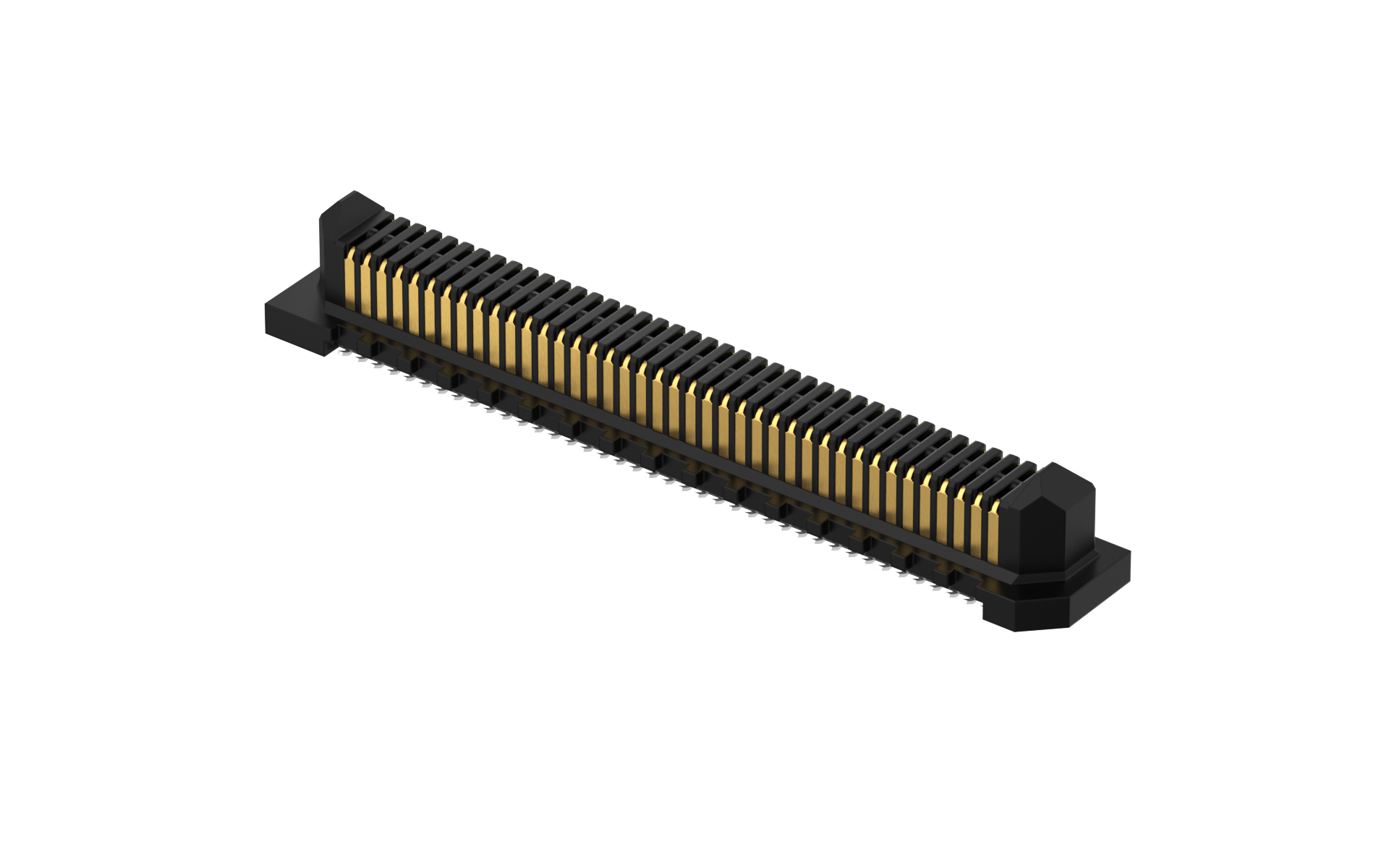

Board to Board 0.8mm, Male, 40Circuits, 180° Vertical(SMT) (28G)
Product Number：FBB08005-M40S3103K6MH90
Production Status： Active
Board to Board 0.8mm, Male, 40Circuits, 180° Vertical(SMT) (28G)
The pictures are for reference only for installation methods, please refer to the specifications and drawings for details
Specification Indication
Quantity
Unit Price (including tax)
Unit Price
1+ {{33.770804|tradeCurrencySymbol({digits:6})}}
10+ {{31.952376|tradeCurrencySymbol({digits:6})}}
50+ {{28.31552|tradeCurrencySymbol({digits:6})}}
100+ {{26.497092|tradeCurrencySymbol({digits:6})}}
500+ {{22.860237|tradeCurrencySymbol({digits:6})}}
Stock(pcs) 873
Lead time Ship Immediately
MOQ 1400
MPQ 3000

Standard Packaging Recommendations

The type of packaging (e.g., tape and reel, tube, pallet) may vary when products are purchased in quantities less than the standard packaging.

Product Catalog
Connectors
Product System
Board to Board Connector
Style
Plug
Gender
Male
Pitch
0.8mm
Row Option
Dual row
Number of Positions
40Circuits
Height(mm)
H8.61
Peg
With peg
Orientation
Vertical(180°)
Colour
Black
Current(Max)
0.5A
Voltage(Max)
50V
Contact Resistance
50 mΩ Max
Insulation Resistance
100 MΩ Min
Withstanding Voltage
200V AC r.m.s
Operating Temperature Range
-40ºC~+85ºC
Data Rate
28Gbps
Mounting Style
SMT
Durability (Mating Cycles Max.)
30
Material-Contact
Phosphor bronze
Plating
Gold on contact, matte tin on tail
Plating Thickness
0.25μm
Material-Resin
LCP
Flammability Rating
UL94 V-0
Packaging
Reel

Product Drawings

FBB08005-M.pdf

3D Drawings

FBB08005-M40S3103K6MH90_REF.stp
REACH (EU REACH Regulation) Does not contain REACH SVHC (1907/2006/EC)
ROHS (EU ROHS Directive) Complies with EU Restriction of Hazardous Substances Directive 2011/65/EU (RoHS2)
ELV (EU ELV Directive) Complies with End-of-Life Vehicles Directive 2000/53/EC (ELV) substance restriction requirements
Receptacle
Board to Board 0.8mm, Female, 40Circuits, 180° Vertical(SMT) (28G)
FBB08005-F40S3103K6MH50
Board to Board 0.8mm, Female, 40Circuits, 180° Vertical(SMT) (28G)
Board to Board Connector, 0.8mm, Female, 40Circuits, Vertical(180°), SMT, With peg, H7.00, 28Gbps
FBB08005-F40S3103K6MH70
Board to Board Connector, 0.8mm, Female, 40Circuits, Vertical(180°), SMT, With peg, H7.00, 28Gbps
